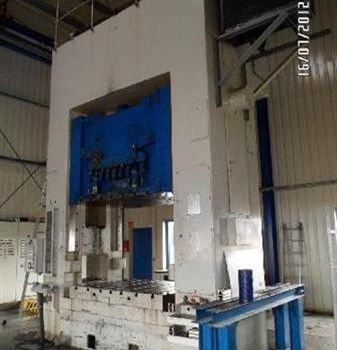

Eitel RZ 400 metal press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Hydraulic Presses |
| Manufacturer: | Eitel |
| Model: | RZ 400 |
| Year of Make: | 1972 |

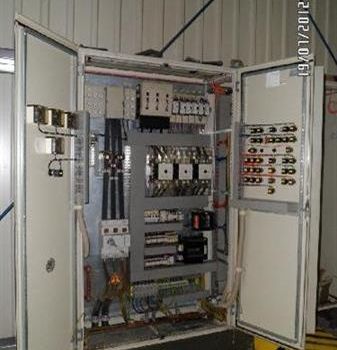

| Description: | REVISED IN 2000 |ram pressure 400 Mp |Pressure attenation 200 Mp |die cushion 60 Mp |Drawing cushion 900 mm |Ram stroke 30 mm |die cushion stroke 200 mm |Installation hight, ram and table 1400 mm |Workspace table 1400 x 2000 mm |Ram workingspace 1400 x 2000 mm |Die cushion workspace 650 x 1500 mm |Demand for oil 4000 L |Connection value 270 kW |voltage 380 V |Shipping weight 52 to |height 6600 mm |width 2010 mm |length 3900 mm |working feed 60 mm/sec |feed up 450 mm/sec |feed down 500 mm/sec |Deep Foundation 1700 mm |with associated switch and control cabinet overhaul in 2000 from Betz |
| Technical Specifications: | Table length: 1400.0 mm Table width: 2000.0 mm Type: Mechanical Ram stroke: 30.0 mm Motor power: 270.0 kW Length x width x height: 3900.0 mm × 2010.0 mm × 6600.0 mm Weight: 52000.0 kg State: good At local norms: yes Status: dismantled |
