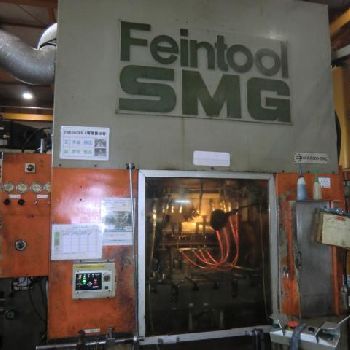

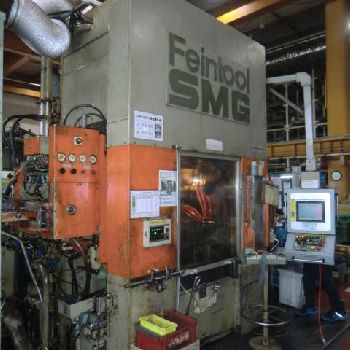

Fine blanking press, 630ton, SMG, HFA6300, 1989
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Japan |
| Category: | Hydraulic Presses |
| Manufacturer: | SMG |
| Model: | HFA6300 |
| Year of Make: | 1989 |
| Description: | INE tool blanking press|Maker; SMG |Model; HFA6300 |Year; 1989|Total force (nominal): 400-630 tons |Slide stroke: 20-100 mm |V-RING |Nominal force: 320 tons |Slide stroke: 40 mm|OTHER DATA |Max. daylight: 400 mm |Cutting force: 180-585 tons |Max. second movement: 27 mm |Close speed: 120 mm/s|TOOL AREA |Lower table width: 900 mm |Lower table depth: 900 mm |Upper table width: 900 mm |Upper table depth: 1260 mm |Tool shut height: 320-400 mm |Clamping area distance: 500 mm |Material distance from upper table: 180-280 mm |Reading accurancy of adjustment indication: 0,01 mm|SPEED |Shearing speed: 3-24 mm/s |Slide closing speed: 120 mm/s |Slide return speed: 135 mm/s |POWER |Total power requirement: 97 kW |Main drive: 75 kW |
| Technical Specifications: | Power in tons: 630 T Table length: 900.0 mm Table width: 1260.0 mm Type: Hydraulic Ram stroke: 100.0 mm Motor power: 75.0 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: dismantled |
