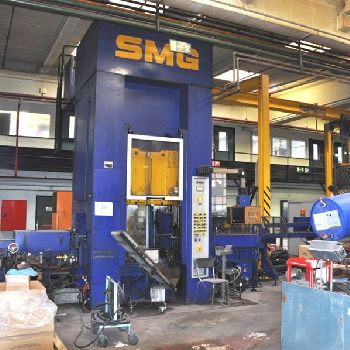

SMG 200 Ton CNC metal press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Hydraulic Presses |
| Manufacturer: | SMG |
| Model: | 200 Ton CNC |
| Description: | Capacity 200 Ton |Max ram adjustment 400 mm |Command (feet/Double hand) CNC |Passage between uprights 1100 mm |Max distance between table -- ram 1000 mm |Dimensions of the table 1000 x 1000 mm |dimensions stamp 1000 x 1000 mm |Max counter-pression table 35 Ton |Max counter-pression ram 2 x 1 Ton |Electric motor (power) 55 kW |Weight 26000 kg|Extra info |CNC Hydraulic deepdraw- & transfer press line |!! 4 dies available: 2 in use & 2 reserve !! |Equipped with HMS doublehead decoiler and HMS straightener |> HMS Straightener RS 87-03/0 |max bandwidth: 300 mm |7 straightening rolls at 80 mm |2 (pneumatic) drawing rolls at 120 mm |speed: 2-10m/min |bandthicnkess: 0,8 - 3 mm|> HMS decoiler BA 3.3-03/040 |max bandwidth: 300 mm |max coilweight: 4 ton |inner coildia: 508 mm |outer coildia: 1500 mm |hydraulic system: 2,2kW - 100 bar - 11l/min|> Automatic CNC Feeder (HMS PSV-3-S0) |> Automatic toolchangingsystem|Stroke in table: 150 mm |Stroke in |
| Technical Specifications: | Power in tons: 200 T Table length: 1000.0 mm Table width: 1000.0 mm Motor power: 55.0 kW Length x width x height: - × - × - Weight: 26000.0 kg State: good At local norms: --------- |
