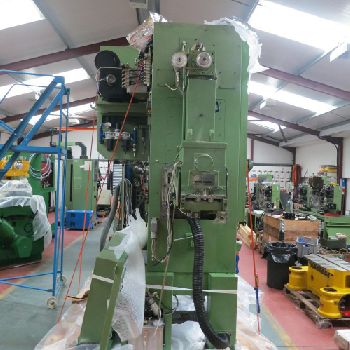

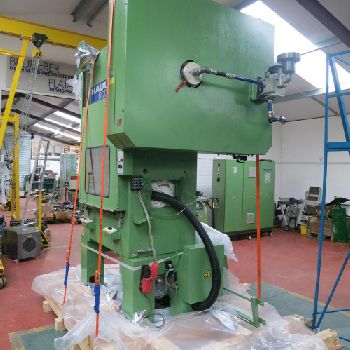

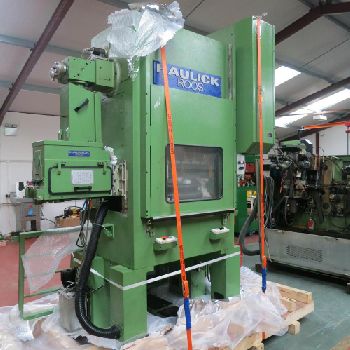

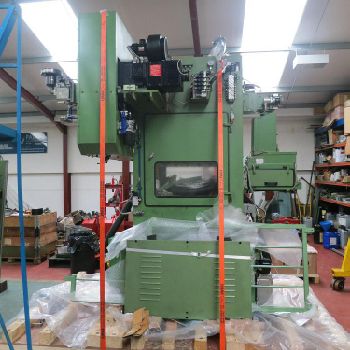

Haulick & Roos RVD63-800NS press, ref 23892
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Hydraulic Presses |
| Manufacturer: | Haulick |
| Model: | RVD 63-800 |
| Year of Make: | 1995 |

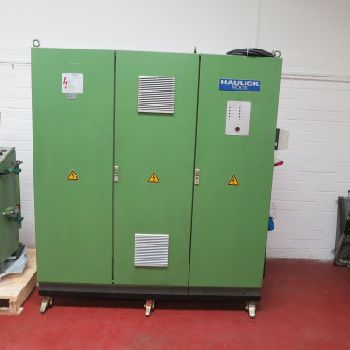

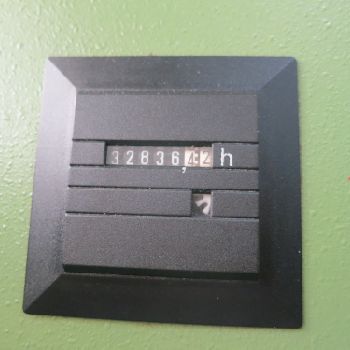

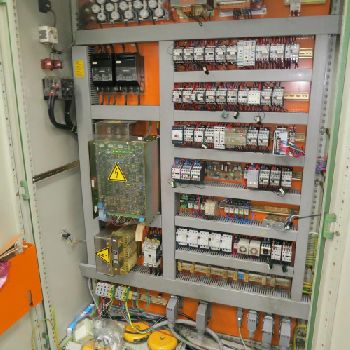

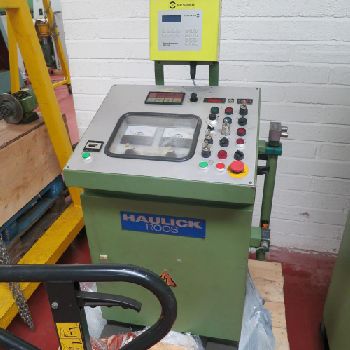

| Description: | used Haulick Roos model RVD63-800NS high speed press. |Year of manufacture 1995. |Working hours 33,000 approx. |Capacity 63 tons |Adjustable stroke 4 60 mm |Strokes per minute 30 to 400. |Bolster (Table) 750 x 640 mm |Max tool width 800 mm |Ram adjustment 80 mm |Ram face 600 x 450 mm |Hole in bed 620 x 140 mm |Weight of press 9000 kgs |Main motor 21 KW |Gripper feed RS 160 fitted on left-hand side, complete with in-feed straightening rolls. |Strip width 10-160 mm |Strip thickness 3 mm Max |Length of feed 1 160 mm |Strip height adjustable 60 mm |Front & Rear operator safety guards |Operators control console. |Imco tonnage monitoring. |Vester tool protection. |Electrical control cabinet. |Electrical supply 400 volts 50Hz. |
| Technical Specifications: | Power in tons: 63 T Table length: 750.0 mm Table width: 640.0 mm Type: Mechanical Nbr of strokes/min: 400.0 Length x width x height: - × - × - Weight: 9000.0 kg State: good At local norms: --------- Status: visible |
