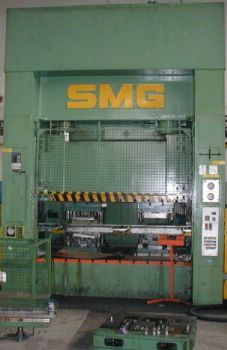

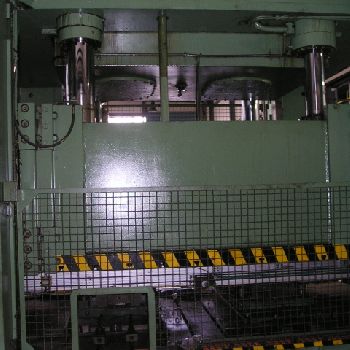

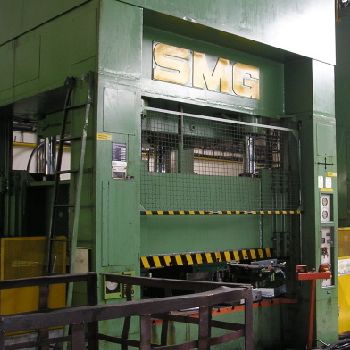

Used SMG HPU 315-2500 Press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Hydraulic Presses |
| Manufacturer: | SMG |
| Model: | HPU 315-2500 |
| Year of Make: | 1979 |
| Description: | Description: engine power 160kW, |voltage 3 PEN / 230V |50Hz TNC-S, |the amount of oil in the reservoir 3400 liters, |Max. towing ram force 3150kN, |max.vratn force of 640kN, |max. 500 mm ram stroke towing, |distance table-ram above 1000mm; |table area and a ram (width x depth) 2500x2350mm, |clear dimension between the front columns of 2,510 mm, |clear dimension between columns on the side of 2,365 mm, |max. speed rapid startup |about 400 mm / sec, |max. working speed of about 80 mm / sec, |max. speed in reverse about 400 mm / sec, |press dimensions (L x W x H) 3780x3328x5944mm, |machine dimensions 2500x2350mm, |weight 55,000 kg press. |Price is negotiable. |
| Technical Specifications: | Power in tons: 315 T Table length: 2500.0 mm Table width: 2350.0 mm Type: Hydraulic Motor power: 160.0 kW Length x width x height: 3780.0 mm × 3328.0 mm × 5944.0 mm Weight: 55000.0 kg State: good At local norms: --------- Status: visible but unplugged |
