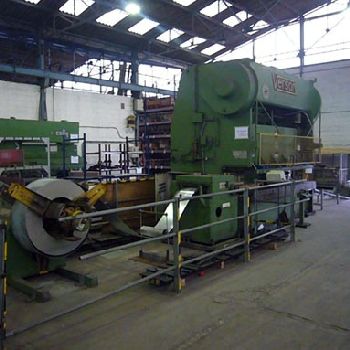

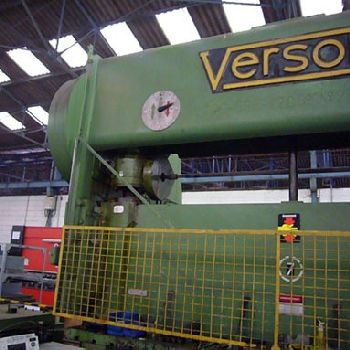

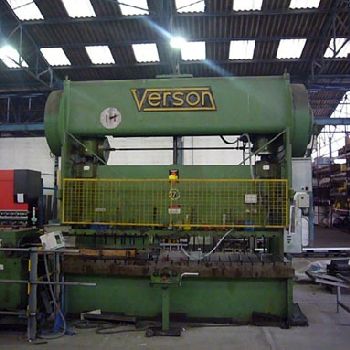

Verson + Dimeco 200GP2120 Eccentric press
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Belgium |
| Category: | Eccentric Presses |
| Manufacturer: | Dimeco |
| Model: | 200GP2120 |
| Year of Make: | 1981 |

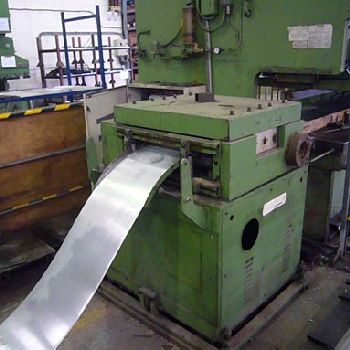

| Description: | Technical information |Capacity 200 Ton |Clutch Air |Max adjustable stroke 100 mm |Passage between uprights 3152 mm |Distance between table -- ram 430 mm |Dimension of the table 3350 x 915 mm |Ram area 3350 x 915 mm |Extra info |Verson Punching machine: |- Depth of throat: 475 mm |- Fixed Stroke: 100 mm |- 30 strokes/min |- Distance between table-stamp: 430 mm |- Distance between centers: 3152 mm |- Table Dimensions: 3350 x 915 mm |- Automatic decoiler Dimeco (motor) Width: 600 mm |- Straightener Dimeco + CNC Feeder |- Weight of Verson: 30,9 ton |
| Technical Specifications: | Power in tons: 200 T Table length: 3350.0 mm Table width: 915.0 mm Ram stroke: 100.0 mm Nbr of strokes/min: 30.0 Distance between columns: 3512.0 mm Length x width x height: - × - × - Weight: 30900.0 kg State: good At local norms: --------- Status: visible |
