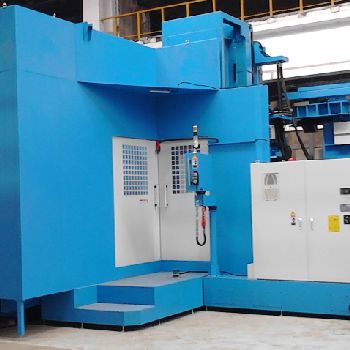

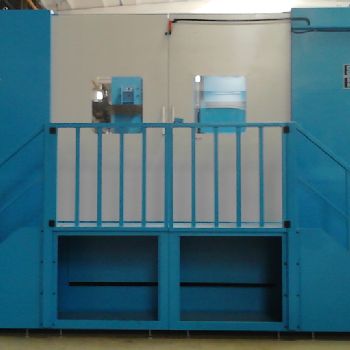

Johnford BMC-130 Table type boring machine CNC
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Romania |
| Category: | Table Type Boring Mills |
| Manufacturer: | JOHNFORD |
| Model: | BMC-130 |
| Year of Make: | 2014 |
| Description: | - Table dimension: 1600x1800 mm |- Maximum load on table: 15000 kg |-Table rotation: 360 (positioning) |- Table longitudinal travel (X axis): 3000 mm |- Headstock vertical travel (Y axis): 2300 mm |- Boring spindle travel (Z axis): 700 mm |- Column transversal travel (W axis): 1600 mm |- Boring spindle diameter: 130 mm |- Rapid feed on axis: 15 m/min. |- Maximum spindle speed: 2500 rpm |- Maximum motor power: 30/37 kW |- CNC: Fanuc 31i MB |- Heidenhain linear measuring scales |- Automatic Tool Changer with 60 posts for milling tools. |
| Technical Specifications: | CNC: FANUC X travel: 3000.0 mm Y travel: 2300.0 mm Z travel: 700.0 mm Table length: 1800.0 mm Table width: 1600.0 mm Max. workpiece weight: 15000.0 kg Spindle diameter: 130.0 mm Max. spindle speed: 2500 rpm Spindle motor power: 37.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: in working conditions At local norms: yes Status: under power |
