Innocenti CWB 200 - CNC Floor Boring Machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Denmark |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Innocenti |
| Model: | CWB |
| Year of Make: | 1960 |

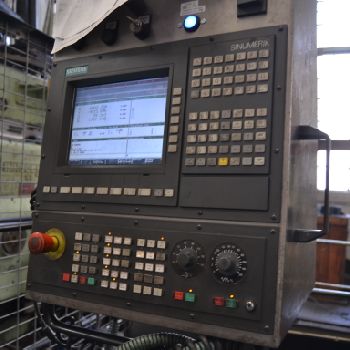

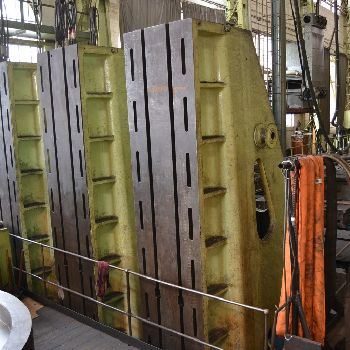

| Description: | Specifications: |Spindle diameter 200 mm |Cross travel (X) 12400 mm |Vertical travel (Y) 4800 mm |Ram mowement (Z) 0-890 mm |Spindle movement (w) 2000 mm |Spindle taper ISO 60 |Spindle speeds 1,8-445 rpm |Spindle Motor Power 0 Kw |Ram Size 1230x830 mm |Control System Siemens 840C X-Y-Z-W axis |Accessories: |Floor Plates 15500-6400 mm |Rotary Table 2280x2280 mm |Table load 20000 kg |Arbor support |Boring bars 3 pc(s) |Angles Plane 4 pc. 4m - 4 small |Vertical Heads - Supports and more |Weight About 350 ton |
| Technical Specifications: | CNC: Siemens 840 X travel: 12400.0 mm Y travel: 4800.0 mm Z travel: 890.0 mm Table length: 15500.0 mm Table width: 6400.0 mm Max. workpiece weight: 20000.0 kg Spindle taper: iso 50 Spindle diameter: 200.0 mm Max. spindle speed: 445 rpm Overhauled: no Length x width x height: - × - × - Weight: 350000.0 kg State: good At local norms: --------- |
