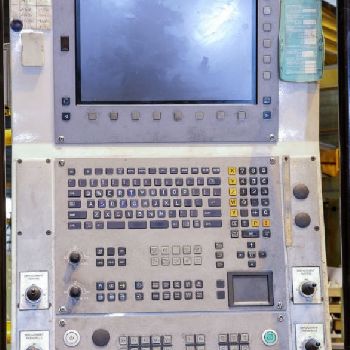

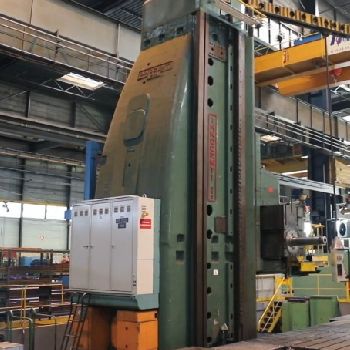

Innocenti CWB FAF 200 Floor type boring machine CNC
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Innocenti |
| Model: | CWB FAF 200 |
| Description: | SPECIFICATIONS |Control Heidenhain iTNC 530 5 Axis |Type of kotterbank - table / floor cotterbank Floortype |Movement X - axis 16000 mm |Displacement Y - axis 1128 mm |Movement Z - shaft 4785 mm |Movement W - shaft 1600 mm |Spindle diameter 200 mm |Spindle Recording Iso SA60 |Power at spindle kW 74 kW |Runs - Speed - Steps 0 - 2200 Rpm |Table size length x width 4.250 x 4.250 mm |Table load in Kg 60000 Kg |shift turns table V as 2590 mm |Number of steered axles 5 |
| Technical Specifications: | CNC: Heidenhain iTNC 530 X travel: 16000.0 mm Y travel: 1128.0 mm Z travel: 4785.0 mm Table length: 4250.0 mm Table width: 4250.0 mm Max. workpiece weight: 60000.0 kg Spindle taper: SA 60 Spindle diameter: 200.0 mm Max. spindle speed: 2200 rpm Spindle motor power: 74.0 kW Overhauled: yes Year of overhauling: 2015.0 Length x width x height: - × - × - Weight: - State: revised At local norms: --------- Status: visible |
