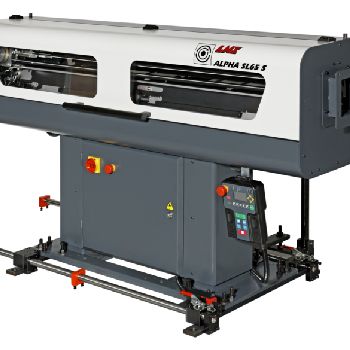

LNS SL65 S Bar feeder
$ 16,515
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | Bar Feeders |
| Manufacturer: | LNS |
| Model: | SL65 S |
| Year of Make: | 2017 |
| Description: | Manufacturer LNS |Year of production 2017 |ADJUSTMENT OF THE DIAMETER |Easy adjustment of the diameter of the processed rod|FLEECIBLE AND ACCURATE POSITIONING |Using the servo motor allows you to make movements with precise positioning at high speed. This fully controlled movement avoids collision with the turret head. |SIMPLE REMOTE CONTROL REMOTE USE |The remote control offers many functions: | Bilingual navigation and settings menu | The selected functions are clearly visible on the LCD display, it is easy to operate | Set / adjust the length of the part, the positioning value is simple on the LCD display|EASY TO USE |The retraction system facilitates access to the lathe without compromising the accuracy of the installation. Loading hopper depth of 660 mm, allows you to place 10 bars 65 mm or 66 bars 10 mm. That provides a long work in the automatic cycle.|SPECIFICATIONS |Range of use of bars 5-65 mm in diameter |The length of the rod 1200 mm - 1500 mm |Loading bars Le |
| Technical Specifications: | Bar length: 1200.0 mm Max bar Ø: 1500.0 mm Spindle type: Single spindle Nbr of tubes: 1.0 Tubes Ø: 65.0 mm Type of feeder: Automatic Max. spindle speed: 12000 rpm Length x width x height: 1000.0 mm × 1900.0 mm × 1420.0 mm Weight: 1000.0 kg Worked hours: 0 hours Hours under power: 0 hours State: new At local norms: --------- Status: packed |
