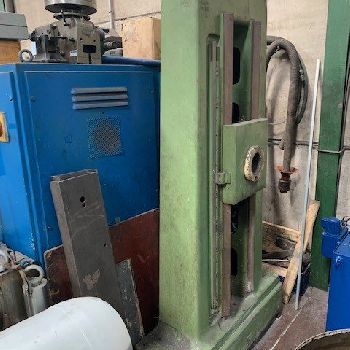

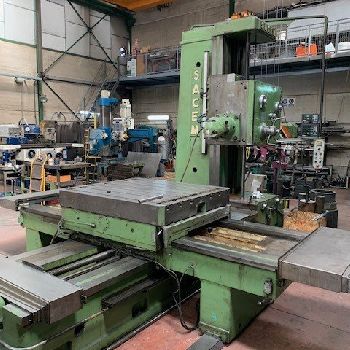

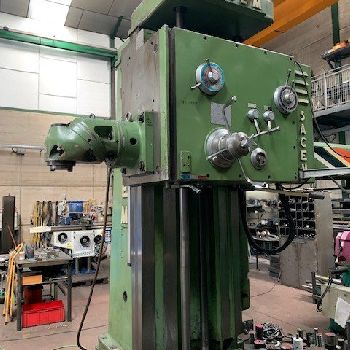

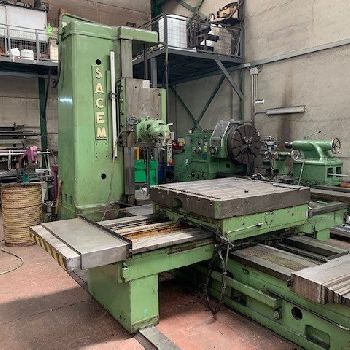

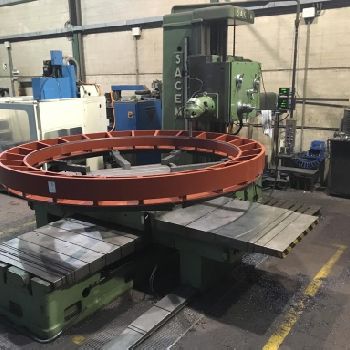

Sacem MST 110 Floor type boring machine
$ 39,637
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Floor Type Boring Mills |
| Manufacturer: | Sacem |
| Model: | MST 110 |
| Description: | Macrinadora SACEM model MST 110, |with Lanbat head, |diameter of the cane 110mm, |40 morse cone |Reed course 1000mm, |Minimum height maximum axis on the table 0-1250mm, |18 spindle speeds 12-1000rpm, |fast advances 3000mm / min, |table of 1260 mm x 1400mm, |2200mm longitudinal course, |Transverse 2200mm, |vertical 1250mm, |with Fagor Dimension Viewer for the axes, and Fagor Dimension Viewer for the table rotation, |with 18,000 divisions |3cv motor, |turn of the table in automatic and fast, |hydraulic mooring of the table, |telescopic protections of the guides, |machine with Luneta, |with barron to boring with lunette |
| Technical Specifications: | X Axis: 2200.0 mm Y Axis: 1250.0 mm Z Axis: 2200.0 mm Table length: 1400.0 mm Table width: 1260.0 mm Spindle diameter: 110.0 mm Max. spindle speed: 1250 rpm Spindle motor power: 2.2 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
