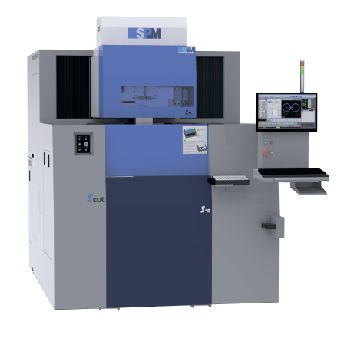

SPM S43 Wire cutting edm machine
$ 142,036
| Type: | Buy-It-Now |
| Location: | Russia |
| Category: | Wire Cutting Machines |
| Manufacturer: | SPM |
| Model: | S43 |
| Year of Make: | 2019 |
| Description: | Amount of movement |X mm 400 |Y mm 300 |Z mm 250 |U mm 100 |V mm 100 |Speed of fast moving x m / min 1300 |Y m / min 1300 |Z m / min 1300 |U m / min 1300 |V m / min 1300 |Maximum machining angle with standard guide dies |deg / mm 24/100 |Maximum machining angle with special guide dies deg / mm 45/50 |Accuracy parameters |Discretization of movements in all axes mm 0.0001 |Positioning accuracy mm 0,002 |Work Area Settings |Internal dimensions of the working bath (LxW) mm 856 770 |Width of the doorway of the working bath mm 768 |Sizes of a desktop of mm 664470 |The maximum dimensions of the workpiece (LxWxH) mm 700x500x240 |Maximum billet weight kg 400 |Height from floor to table surface mm 1000 |Processing parameters |The main processed material Tool steel |Surface roughness (Ra) on an area of mm2 - 2-3 passes m 0.4 |The best surface roughness (Ra) on an area of mm2 - 4 passes m 0.17 -0.18 |Maximum performance (workpiece height 50mm Cr12 material electrode- |
| Technical Specifications: | X Axis: 400.0 mm Y Axis: 300.0 mm Z Axis: 250.0 mm Max. workpiece length: 700.0 mm Max. workpiece width: 500.0 mm Max. workpiece weight: 400.0 kg CNC Type: SPM Worktank length: 856.0 mm Worktank width: 770.0 mm Worktank height: 250.0 mm Max. workpiece height: 240.0 mm Automatic Wire Feeding: Yes Length x width x height: 1641.0 mm × 2426.0 mm × 2150.0 mm Weight: 2570.0 kg Worked hours: 0 hours Hours under power: 0 hours State: new At local norms: --------- Status: packed |
