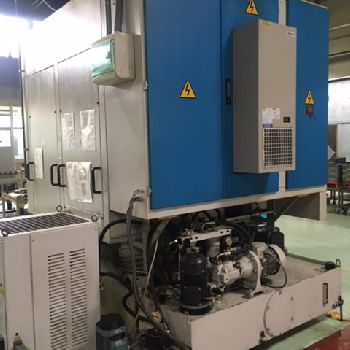

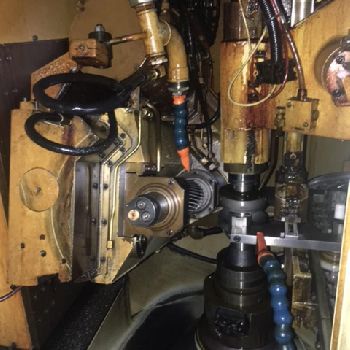

PFAUTER P 200 CNC Cnc gear hobbing machine
$ 149,743
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Hobbing Machines |
| Manufacturer: | Gleason-Pfauter |
| Model: | P 200 CNC |
| Description: | Technical data |Working capacity: max. diameter 400 mm |max. module 8 |max. width of the gear wheel 310 mm |Min. 6 |Axes distance between work- |piece and tool: |min. 20 mm |max 290 mm |Diam. 400 mm clamping table |Diameter of the table drill 80 mm |Diameter of the shaft of the workpiece 36 mm |Milling stroke 310 mm |Gear hob: |max. diameter 160 mm |min. diameter 160 mm |Max. strawberry mover. 120/126 mm |Milling cut speeds: |stepless |from 80 turns |up to 500 rpm |Flux: |stepless |axial from 0,4 mm / r |up to 7.5 mm / r |radial starting from 0.63 mm / r |up to 0.315 mm / r |tangential of 0.16 mm / r |up to 3.0 mm / r |Voltage 50 Hz 3x 220 Volt |Total power required 19 HP |Machine weight about 6200 kg |Overall dimensions machine: |Length 4680 mm |Width 2395 mm |Height 2515 mm |

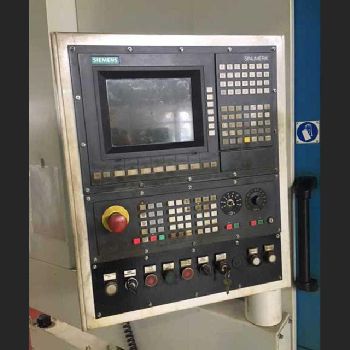

| Technical Specifications: | Max wheel Gear Ø: 400.0 mm Module +: 8.0 CNC type: SIEMENS Max spindle speed: 500 rpm Max gear width: 310.0 mm Length x width x height: 4680.0 mm × 2395.0 mm × 2515.0 mm Weight: 6200.0 kg State: good At local norms: --------- |
