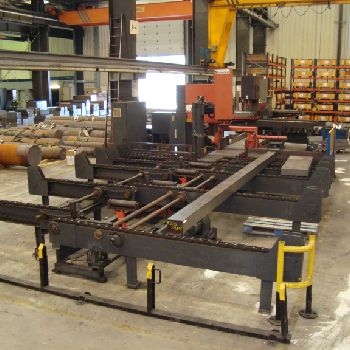

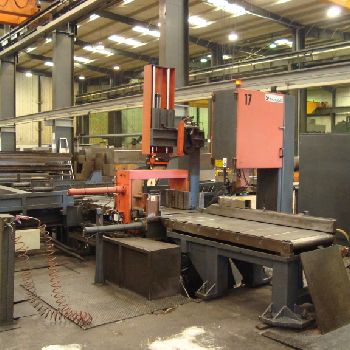

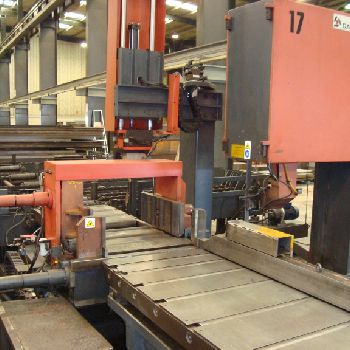

Danobat VPTA 40/60 ADU band saw for metal
$ 18,717
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Metal Cutting Band Saws |
| Manufacturer: | Danobat |
| Model: | VPTA 40/60 ADU |
| Year of Make: | 2002 |
| Description: | Programming of series of bar-to-bar with definition of the material type and dimensions auto-adjusting the cutting parameters. |Possibility of programming several square or round bars and different qualities in automatic (including peeling and marking by pneumatic punching) leaving the leftovers in the magazine at the back and pieces on the delivery table.|Technical characteristics: |- Maximum cutting width: 630 mm |- Maximum workpiece height: 400 mm |- Working table height (without pit): 769 mm |- Diameter of steering wheels: 800 mm |- Speed of the belt: 12-98 m / min |- Dimensions of the belt: 6500 x 41 x 1.3 mm |- Main motor power of the belt: 5.5 kW |- Motor power of the spindle head travel: 2.4 kW |- Motor power of the jaws travel: 2,4 kW |- Power of the chip conveyor: 0.18 kW |- Power of the cooling motor pump: 1,1 kW |- Power of hydraulic unit: 1,8 kW |- Length of the feeding magazine: 5815 mm |- Crossbar of the feeding magazine: 3000 mm |- Length of the scrap ma |
| Technical Specifications: | Cutting width: 630.0 mm Cutting height: 410.0 mm Blade length: 6000.0 mm Blade width: 410.0 mm Engine power: 5.5 kW Table tilting in °: 0 ° Length x width x height: 10450.0 mm × 6632.0 mm × 2470.0 mm Weight: 8000.0 kg State: good At local norms: yes Status: in production |
