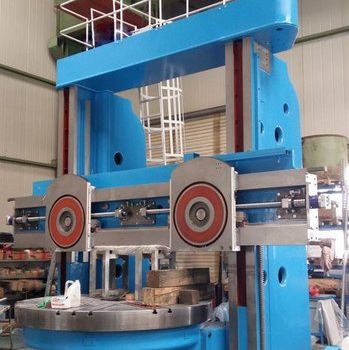

ČKD Blansko SKD 32 A vertical turret lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Vertical Turret Lathes |
| Manufacturer: | CKD Blansko |
| Model: | SKD 32 A |
| Year of Make: | 1985 |
| Description: | nominal turning diameter (all slides) 3200 mm |max turning diameter by right cross slide 3500 mm |max turning height above clamping plate with normal 2500 mm blade holder |clamping plate: |- diameter 3200 mm |- max load 40000 kg |- max. torque 122 kNm |- speed continuously variable in two stages: |- 1st stage 0.6-22 / min |- 2nd stage 2.8-80 / min |- number of clamping jaws 8 |crossbar. |- movement of cross member 2100 mm |- Adjustable feed rate 500 mm / min |slides: |- slide movement: |- cross beam support right - horizontally 1975 mm |- transverse support left - horizontally 1485 mm |- side support - vertical 2120 mm |slide movement: |- transverse support right - vertical 1600 mm |- transverse support left - vertical 1600 mm |- side support - horizontal 1600 mm |tilting slides: |- cross beam support right + - 30 |- cross member - left + - 30 |- side support + - 15 |displacements continuously variable: |- working 0.2-200 mm / min |- adjustable 2-2000 mm |
| Technical Specifications: | Ø: 3500.0 mm Plate diameter: 3200.0 mm Working height: 2800.0 mm Max piece weight: 40000.0 kg Rotation speed: 2470 rpm Motor power: 85.0 kW Overhauled: no Length x width x height: 10210.0 mm × 7300.0 mm × 9300.0 mm Weight: 70500.0 kg State: good At local norms: no Status: visible but unplugged |
