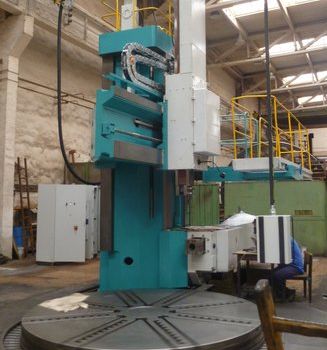

Čkd Blansko SKJ 32–63 vertical turret lathe - overhauled
$ 784,186
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Vertical Turret Lathes |
| Manufacturer: | CKD Blansko |
| Model: | SKJ 32–63 |
| Description: | MACHINE PARAMETERS AFTER MODERNIZATION |WORK PARAMETERS |Maximum machining diameter [mm] 6 300 |Maximum machining diameter in the table center [mm] 4,000 |Maximum workpiece height [mm] 2,500 |Maximum workpiece weight [kg] 40,000 |TABLE |Clamping plate diameter [mm] 3 200 |Maximum table load [kg] 40,000 |Clamping plate speed [rpm] 1 - 80 |Maximum Torque [kNm] 120|DRIVE STAND |Stand travel [mm] 1 550 |Stand Speed [mm / min] 500|FRAME |Transverse travel [mm] 1 900 |Cross travel speed [mm / min] 500 |SUPORT |Travel of axis Z (slide slide) [mm] 1,600 |Feed rate (X and Z axes) [mm.min-1] 1-6000 |Rapid traverse [mm.min-1] 6,000 |Sliding cross section [mm] 250x250 |Maximum cutting force [kN] 80 |CONTROL SYSTEM SINUMERIK 840 Dsl |MACHINE DIMENSIONS |Machine height [mm] 9 800 |Machine height above floor [mm] 7 600 |Machine length [mm] 11 500 |Machine width [mm] 8 600 |Machine weight [kg] 65,000 |B. TECHNICAL SPECIFICATION OF THE MACHINE MODERNIZATION |Design activiti |
| Technical Specifications: | Ø: 6300.0 mm Plate diameter: 3200.0 mm Working height: 2500.0 mm Max piece weight: 40000.0 kg Overhauled: yes Length x width x height: 11500.0 mm × 8600.0 mm × 9800.0 mm Weight: 65000.0 kg State: good At local norms: --------- Status: visible but unplugged |
