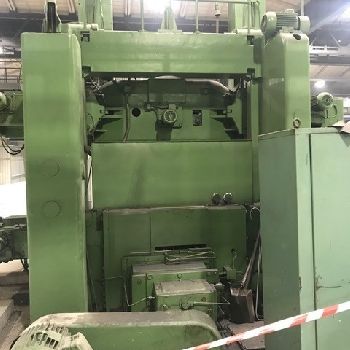

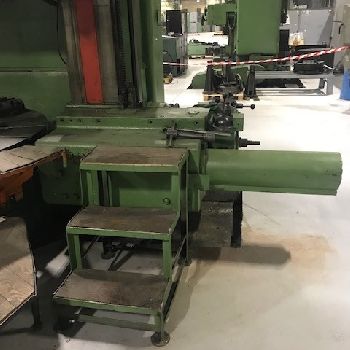

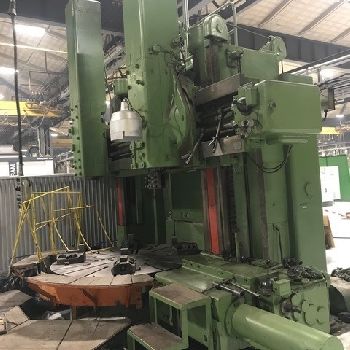

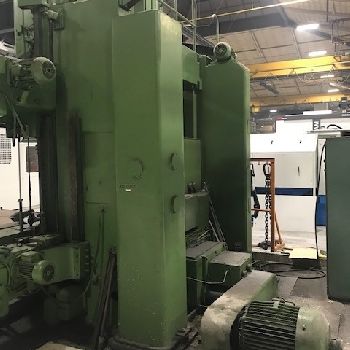

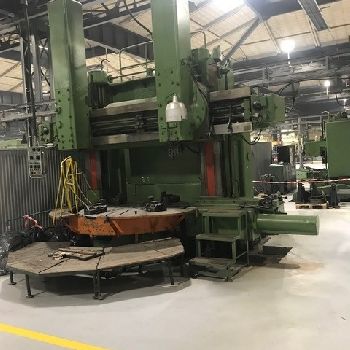

Rafamet KCF 200 vertical turret lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Rafamet |
| Model: | KCF 200 |
| Year of Make: | 1974 |
| Description: | faceplate diameter 2000 mm |swing diameter 2230 mm |turning height 1250 mm |drilling depth in one stroke 850 mm |horizontal travel of side carriages 850 mm |distance face plate/tool carrier 1250 mm |vertical adjustment of the crossrail 750 mm |workpiece weight 10 t |speeds 10- 100 U/min |feeds 0,0125 - 11,2 mm/U |rapid traverse 1900 mm/min |Voltage 400 V |
| Technical Specifications: | Ø: 2000.0 mm Plate diameter: 2000.0 mm Working height: 1250.0 mm Max piece weight: 10000.0 kg Rotation speed: 100 rpm Overhauled: no Length x width x height: 3500.0 mm × 4000.0 mm × 4500.0 mm Weight: 35000.0 kg State: good At local norms: --------- Status: visible |
