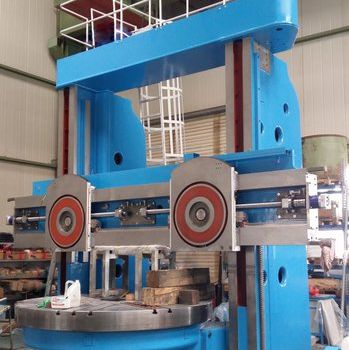

Čkd Blansko SK 25 A vertical turret lathe with cnc
$ 465,195
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Vertical Turret Lathes |
| Manufacturer: | CKD Blansko |
| Model: | SK 25 A |
| Description: | PARAMETERS OF THE SURFACE|Max. Workpiece diameter [mm] 2 600 |Max workpiece height [mm] 1 600 |Max workpiece weight [kg] 10,000|TABLE|Diameter [mm] 2 400 |Maximum table load [kg] 10,000 |Maximum speed [min-1] 117 |Maximum torque [kNm] 64 |Power output of the main drive [kW] 80|FRAME|Beam crossing [mm] 1 400 |Crossbar travel speed [mm.min-1] 525|SUPPORT RIGHT|Axis travel "X (cross beam support) [mm] 1 600 |Travel of the Z axis (slider extension) [mm] 1 000 |Feed rate (X and Z) [mm.min-1] 1 - 6,000 |Rapid traverse [mm.min-1] 6,000 |Cross section [mm] 200 x 200 |Maximum Cutting Strength [kN] 70|SUPPORT LEFT|Travel of the U axis (cross beam support) [mm] 1 600 |Travel of the V axis (slider extension) [mm] 1 000 |Feed rate (U and V) [mm.min-1] 1 - 6,000 |Rapid traverse [mm.min-1] 6,000 |Cross section [mm] 200 x 200 |Maximum Cutting Strength [kN] 70|DIMENSIONS OF THE MACHINE|Height of the machine above the floor (at the highest cross beam position) [mm] 7000 |Machine length |
| Technical Specifications: | Plate diameter: 2400.0 mm Working height: 1600.0 mm CNC type: SINUMERIK 840D sl Max piece weight: 10000.0 kg Overhauled: yes Length x width x height: 11000.0 mm × 7000.0 mm × 7000.0 mm Weight: 50000.0 kg State: good At local norms: --------- Status: visible but unplugged |
