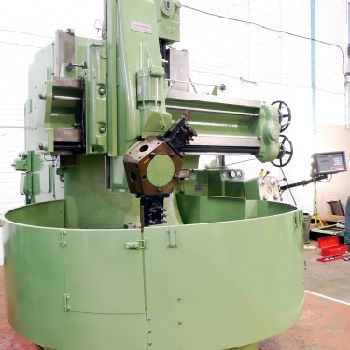

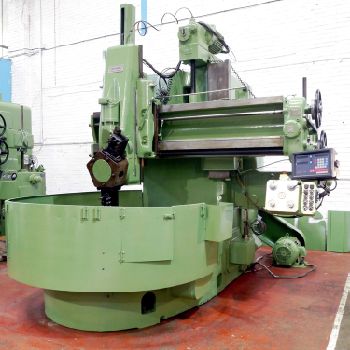

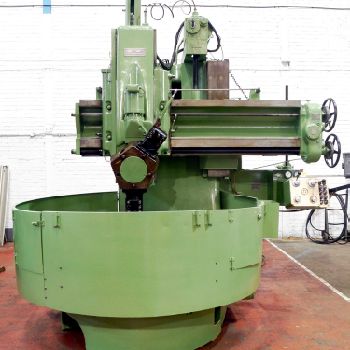

Webster & Bennett EM 72 vertical turret lathe with cnc
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Vertical Turret Lathes |
| Manufacturer: | Webster & Bennett |
| Model: | EM 72 |

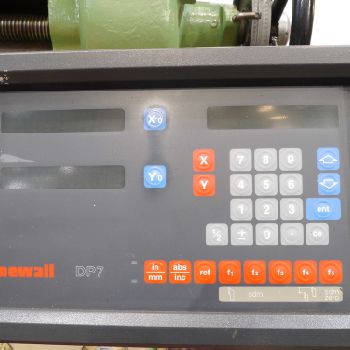

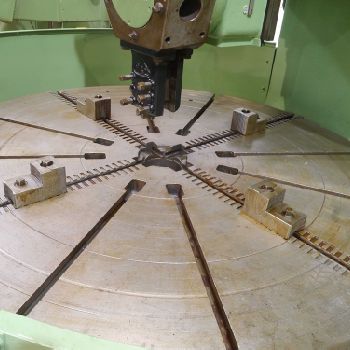

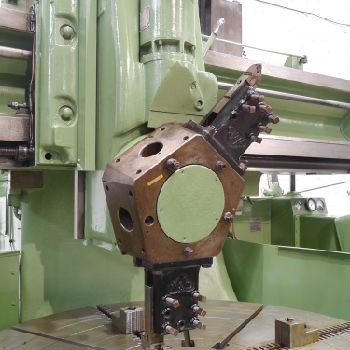

| Description: | Table Size 72" / 1829mm |Swing 84 / 2134mm |Height under cross slide 48 / 1219mm |Cross slide rise & fall 23 / 584mm |Turret rise & fall 38 / 965mm |Turret traverse 46 / 1168mm |Speeds 2.5-55.5 rpm |Feed rate 0.005 - 0.250 / 0.13mm - 6.35mm |Input 400/3/50 ac 25 hp |Digital Readout Newall 2 Axis |Fitted with |Powered Turret Rotation and 4 x Table Jaws |Length 12’10 / 3.91m |Width 11’ / 3.35m |Height 10’10 / 3.30m |Nett weight approx. 16 ton / 16,256 kgs |
| Technical Specifications: | Plate diameter: 1829.0 mm Working height: 1219.0 mm CNC type: Newall Rotation speed: 55.5 rpm Motor power: 18.6 kW Overhauled: no Length x width x height: 3910.0 mm × 3350.0 mm × 3300.0 mm Weight: 16256.0 kg State: good At local norms: --------- Status: visible |
