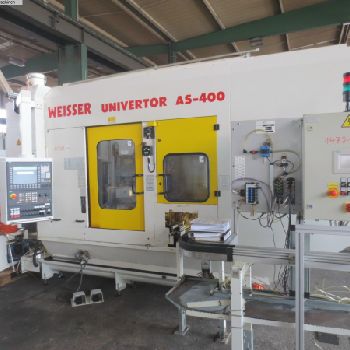

Weisser Univertor AS-400L cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | Weisser |
| Model: | Univertor AS-400L |
| Year of Make: | 2008 |

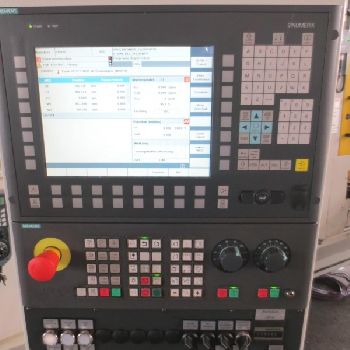

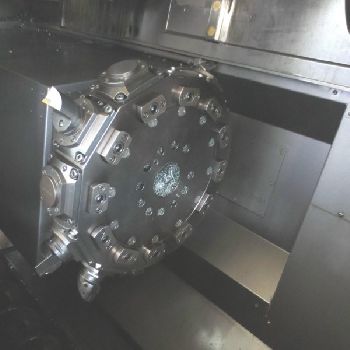

| Description: | turning diameter 250 mm |turning length 400 mm |control SIN840D |swing diameter max. 300 mm |workpiece length - max. 400 mm |travel -x axis 280 mm |feed in x - axis 0,1 - 30000 mm/min |rapid traverse X-axis 30 m/min |travel -z axis 1150 mm |work stroke Z: 500 mm |feed in z-axis 0,1 - 60 mm/min |rapid traverse Z-axis 60,00 m/min |spindle bearing diameter 90 mm |Spindle head DIN55026 - Size A6 |turning speed range - stepless 1 - 5000 U/min |power capacity at 40 % load 23,00 kW |power capacity at 100 % load 18,10 kW |tool turret 12-fach |tool taper CAPTO C4 |tailstock travel W1: 298 mm |tailstock quill taper MT 4 |steady stroke W3: 118 mm |passage of steadyrest 10 - 70 mm |total power requirement 45,00 kW |weight of the machine ca. 11,00 t |dimensions of the machine ca. 7,00 x 5,00 x H3,20 m m |CNC lathe with SIEMENS SINUMERIK 840D control; Screw conveyor |with chip breaker and return pumping station; NC-steady SMW-SLU-1-OLD 10-70mm; |12-fold tool turret SAUTER |
| Technical Specifications: | Turning length: 400.0 mm Turning Ø: 250.0 mm Ø above the bed: 300.0 mm Type of CNC: SIEMENS SINUMERIK 840D X-axis: 280.0 mm Z-axis: 1150.0 mm Spindle taper: A6 Spindle bore: 90.0 mm Number of tools on turret: 12.0 Turning speed: 5000 rpm Spindle motor power: 18.1 kW Tailstock: yes Bar feeder: no Length x width x height: 7000.0 mm × 5000.0 mm × 3200.0 mm Weight: 11000.0 kg State: good At local norms: --------- |
