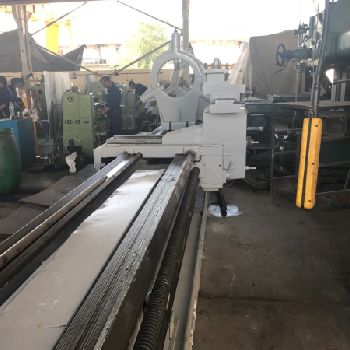

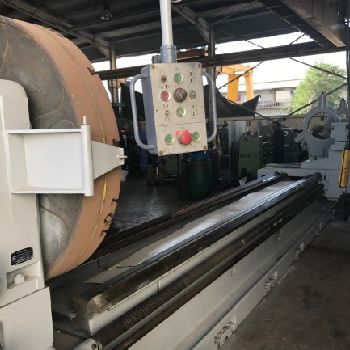

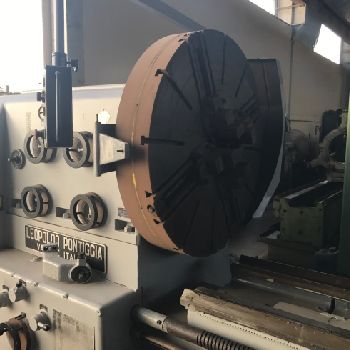

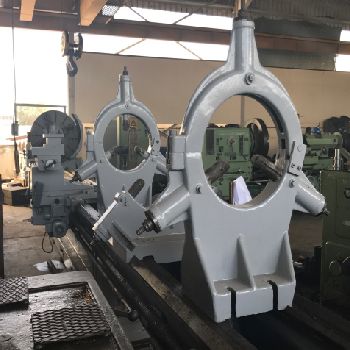

L.Pontigga Italy L. PONTIGGIA H 700 heavy duty lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Arab Emirates |
| Category: | Lathes |
| Manufacturer: | Pontiggia |
| Model: | L. PONTIGGIA H 700 |
| Description: | Universal center lathe machine |Brand: L. PONTIGGIA H 700 |Made in Italy (USED) |Distance Between Centers: 14,000 mm |Center Height: 700 mm |Chuck : 1200mm |Max over Bed: 1390mm |Max over Saddle: 1045mm |Max over Gap: 1745mm |Gap Length: 600m |Bed Width: 700mm |Spindle Hole: 102mm |Spindle Motor Power: 31,5 HP |Spindle Speeds N.18 : 4,2-400RPM |Max Weight Between Centers: 10,000KG |Max Weight Between Centers ( With 1 Steady): 13,000KG |Total Weight: 30 Tons |
| Technical Specifications: | Length between centers: 14000.0 mm Max. turning Ø: 1400.0 mm Turning length: 14000.0 mm Center height: 700.0 mm Ø above the bed: 1390.0 mm Ø above transversing slide: 1045.0 mm Diameter in the gap: 1745.0 mm Faceplate diameter: 1200.0 mm Spindle bore: 102.0 mm Spindle motor power: 23.5 kW Overhauled: no Length x width x height: - × - × - Weight: 10000.0 kg State: good At local norms: --------- Status: under power |
