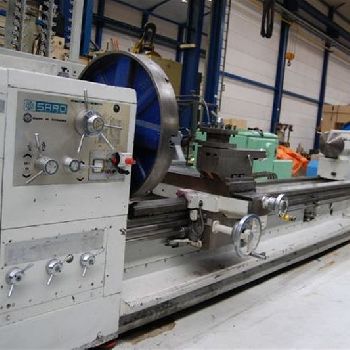

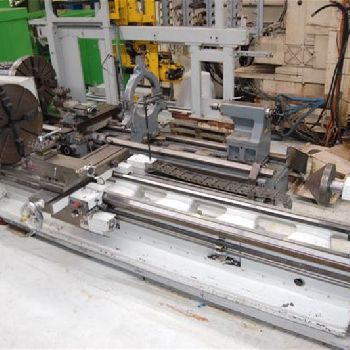

SARO SPA10x4000 heavy duty lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Belgium |
| Category: | Lathes |
| Manufacturer: | SARO |
| Model: | SPA10x4000 |
| Year of Make: | 1989 |
| Description: | Specifications |Machine number 8943165-2175-81 |Year of Manufacture 1989 |Centre distance (mm) 4000 |Max swing over bed (mm) 1020 |Max swing over cross slide (mm) 620 |Max swing in gap (mm) 1250 |Spindle bore (mm) 105 |R.P.M. 8 - 1250 |kW 22 |Volts 380V |Cycles 50|4-Jaw Chuck 1.000 mm |3-Jaw Chuck 400 mm |4-Way Tool Post |Rapid Traverse |
| Technical Specifications: | Length between centers: 4000.0 mm Max. turning Ø: 1020.0 mm Turning length: 4000.0 mm Ø above the bed: 1020.0 mm Ø above transversing slide: 620.0 mm Diameter in the gap: 1250.0 mm Spindle bore: 105.0 mm Turning speed: 1250 rpm Spindle motor power: 22.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
