Used Leadwell T6 SMY cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Leadwell |
| Model: | T6 SMY |
| Year of Make: | 2010 |

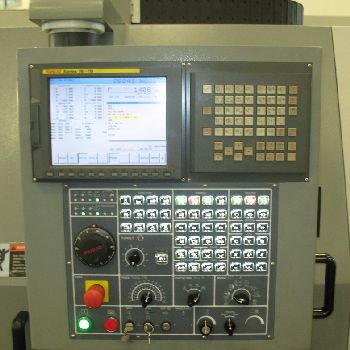

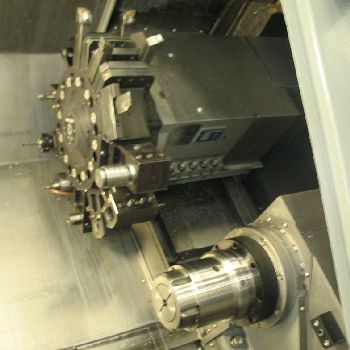

| Description: | Fanuc 18 i TB control|Accessories |- Tool presetting |- Chip conveyor |- Carpet for the unloading of machined parts |- Bar push-in interface (TOP Automation loader) |- Pliers holder|Work capacity |- Max. Diameter allowed on pallet 450 mm |- Max turning diameter 380 mm |- Max. Turning length 458 mm|Main spindle line |- Spindle nose type ASA A2 / 5 |- Diameter of the bearing est / int 140/90 mm |- Useful bar passage 65 mm |- Laps / minute 30/6000 rpm |- Spindle motor power AC Kw 7.5 |- Maximum torque Kg / m 7.14 |- Minimum increase in C axis -1 degrees 0.001 |- 40 rpm positioning speed|Tool turret |- Number of station tools 12 |- Number of motorized stations staz. 12 |- Rotation speed of 4000 rpm driven tools |- Kw motor driven tools power 3.7 |- Y axis movement mm +/- 50 |- Section ut. with square O.D. 20 mm |- Section ut. with round stem I.D. mm 32 |- Station intexing time sec. 0.6 |- 360 rotation time 1.6 |- Servo ass. Rotation mechanism standard |- Cooling |
| Technical Specifications: | Turning length: 458.0 mm Turning Ø: 380.0 mm Type of CNC: Fanuc 18 i TB X-axis: 190.0 mm Z-axis: 450.0 mm Spindle taper: ASA A2/5 Number of turrets: 1.0 Number of tools on turret: 12.0 Number of rotating tools: 12.0 Turning speed: 6000 rpm Spindle motor power: 7.5 kW Tailstock: no Bar feeder: no Length x width x height: 3740.0 mm × 2060.0 mm × 2000.0 mm Weight: 4600.0 kg State: good At local norms: yes Status: under power |
