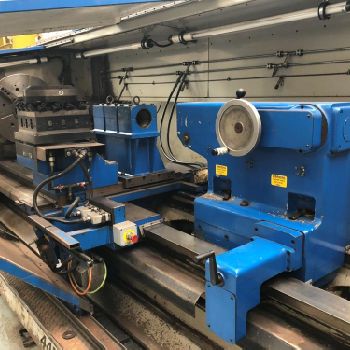

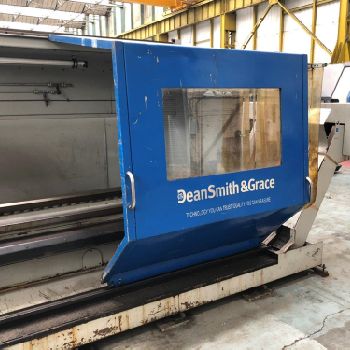

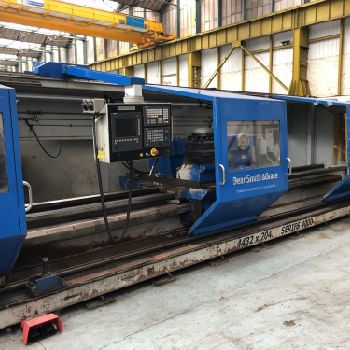

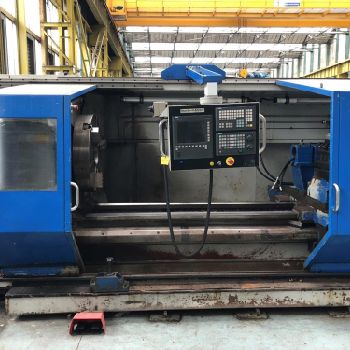

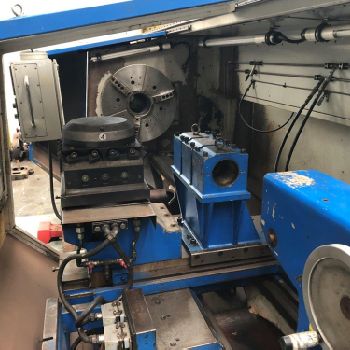

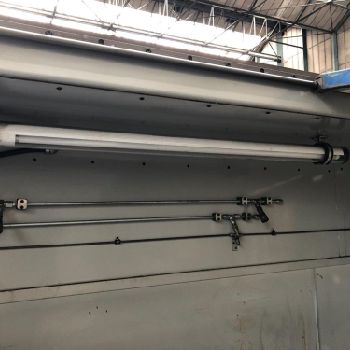

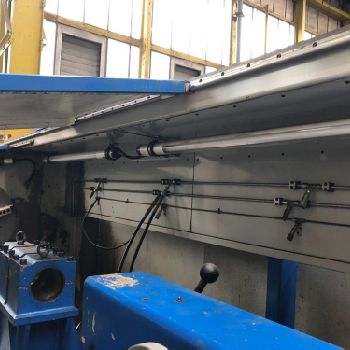

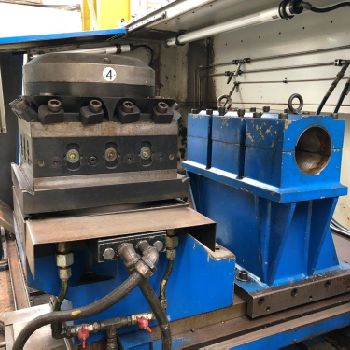

Dean Smith & Grace Series 4000 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | CNC Lathes |
| Manufacturer: | Dean Smith & Grace |
| Model: | Series 4000 |
| Year of Make: | 2007 |
| Description: | Year of Manufacture 2007 |Control Siemens Sinumerik 840D |Distance between centres 5500mm |Height of centres 555mm |Between centres 5500mm |Swing over bed 1016mm |Swing over cross slide 711mm |Spindle speeds 12 - 1500rpm |Spindle bore 200mm |3 jaw chuck SMW auto blok 800mm powered 3 jaw chuck with 220mm bore |Equipment Front & Rear Swarf Conveyor, Boring bar attachment. |Length 8600mm |Width 2300mm |Height 2400mm |Nett weight actual. 15,750 Kgs. / 15.5 Tons. |
| Technical Specifications: | Ø above the bed: 1016.0 mm Ø above transversing slide: 711.0 mm Length between centers: 5500.0 mm Type of CNC: Siemens Sinumerik 840D Spindle bore: 200.0 mm Turning speed: 1500 rpm Tailstock: no Bar feeder: no Length x width x height: 8600.0 mm × 2300.0 mm × 2400.0 mm Weight: 15750.0 kg State: good At local norms: --------- |
