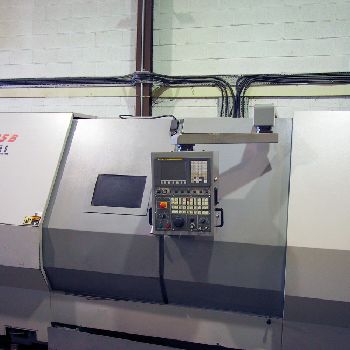

Leadwell LTC-35B cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | CNC Lathes |
| Manufacturer: | Leadwell |
| Model: | LTC-35B |
| Year of Make: | 2007 |

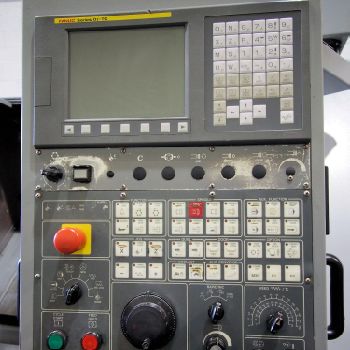

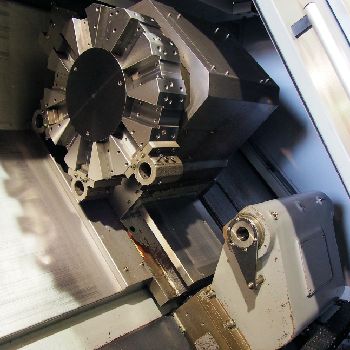

| Description: | Control FANUC Oi |Swing 720mm |Swing over the Cross-slide 540mm |Bar Capacity 91mm |Chuck Size 300mm |Maximum Cutting diameter 600mm |Maximum Cutting Length 1030mm |Maximum workpiece weight 700kg |Turret Positions 12 Station |Rapid Feedrates XZ: 15 x 20m/minute |Spindle Motor Power 30kW |Spindle Nose A2-8 |Spindle Speed 25 ~ 2500rpm |Tailstock Quill Stroke 125mm |Tailstock Taper MT 5 |Tool Size 32 x 32mm |X axis Travel 320mm |Z axis Travel 1100mm |Machine Dimensions 5750 x 2090 x 2192mm |Machine Weight 9400kg |
| Technical Specifications: | Turning length: 1030.0 mm Turning Ø: 600.0 mm Ø above the bed: 720.0 mm Ø above transversing slide: 540.0 mm Type of CNC: FANUC OI X-axis: 320.0 mm Z-axis: 1100.0 mm Max workpiece weight: 700.0 kg Spindle taper: A2-8 Number of tools on turret: 12.0 Turning speed: 2500 rpm Spindle motor power: 30.0 kW Tailstock: yes Bar feeder: no Length x width x height: 5750.0 mm × 2090.0 mm × 2192.0 mm Weight: 9400.0 kg State: good At local norms: --------- |
