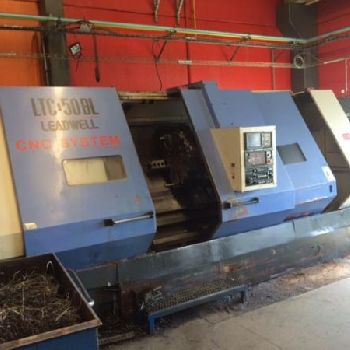

LEADWELL LTC50BL cnc lathe
$ 66,613
| Type: | Buy-It-Now |
| Location: | France |
| Category: | CNC Lathes |
| Manufacturer: | Leadwell |
| Model: | LTC50BL |
| Year of Make: | 1999 |
| Description: | technical characteristics |Diameter above the bench 800 mm |Diameter above the slide 700 mm |Max machinable length 2035 mm |Max bar diameter 117 mm |Max weight of the piece 1200 kg |Stroke X 425 mm |Stroke Z 2100 mm |Spindle speed 15 to 1500 rpm |Spindle nose A2-11 " |Spindle boring 140 mm |Spindle motor power 37 Kw |Spindle motor torque 379.3 Nm |Inclination of the 45 bench |Fast forward X axis 10 m / min |Fast forward Z-axis 12 m / min |Type of tool chair doors (32 square) |Number of tools 12 |Indexing Time (1 tool) 1.45 sec |Cone Morse Tailstock CM6 |Programmable tailstock type |Running of the sleeve 125 mm |Type of rotating sheath |Outlet of the hydraulic sheath |Installed power 70 Kva |Year 1999 |Number of hours 7900|Feeler tools Yes |Hydraulic chuck diameter 381 mm Yes |Motorized turret optional |Chip conveyor Yes |Optional bartor |Optional manual chuck |
| Technical Specifications: | Turning length: 2035.0 mm Turning Ø: 800.0 mm Ø above the bed: 800.0 mm Ø above transversing slide: 700.0 mm X-axis: 425.0 mm Z-axis: 2100.0 mm Max workpiece weight: 1200.0 kg Spindle taper: A2-11" Spindle bore: 140.0 mm Number of tools on turret: 12.0 Number of rotating tools: 12.0 Turning speed: 1500 rpm Spindle motor power: 37.0 kW Tailstock: yes Bar feeder: yes Length x width x height: 5606.0 mm × 2575.0 mm × 2426.0 mm Weight: 17000.0 kg Hours under power: 7900 hours State: good At local norms: --------- Status: visible |
