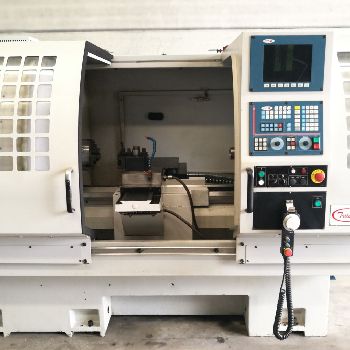

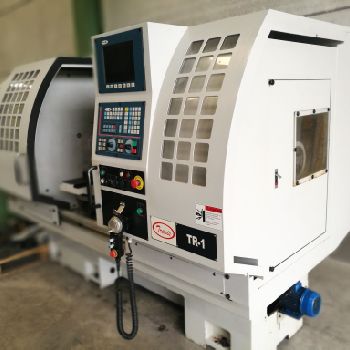

Travis TR-1 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | CNC Lathes |
| Manufacturer: | Travis |
| Model: | TR-1 |
| Year of Make: | 2008 |

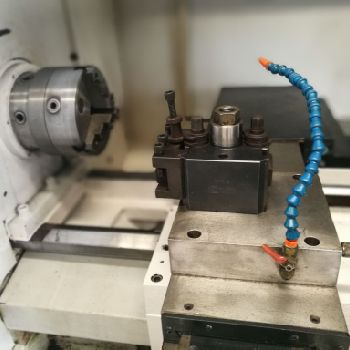

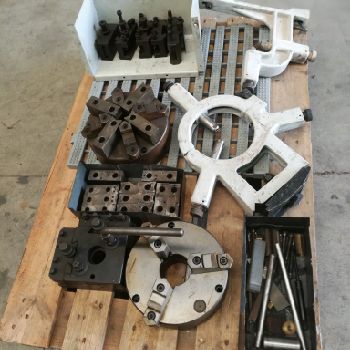

| Description: | CNC lathe |Manufacturer: Travis |Model: TR-1 |Distance between centers: 1000 mm. |Diameter on bed: 450 mm. |Diameter on carriage: 220 mm. |Spindle bore: 56 mm. |X axis travel: 280 mm. |Z axis travel: 810 mm. |Fast movements X, Z = 5, 8 m / min. |Spindle cone: MT 4 |Speed range: 35-3100 rpm |Main motor power: 10 HP |Machine weight: 3000 kg|Equipped with: |- Fagor 8055 CNC |- Universal plate with 3 claws, diameter 200 mm with 2 sets of claws |- Universal plate with 3 claws, diameter 250 mm with 2 sets of claws |- Universal plate with 4 claws, diameter 250 mm with 3 sets of claws |- Quick change manual turret with height adjustment with 3 tool holders (140 of square) |- Quick change manual turret with height adjustment with 5 tool holders (120 square) |- 1 open bezel and 1 closed bezel: diameter 160 mm |
| Technical Specifications: | Ø above the bed: 450.0 mm Ø above transversing slide: 220.0 mm Length between centers: 1000.0 mm Type of CNC: Fagor 8055 X-axis: 280.0 mm Z-axis: 810.0 mm Spindle taper: MT#4 Spindle bore: 56.0 mm Turning speed: 3100 rpm Spindle motor power: 7.5 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: 3000.0 kg State: good At local norms: --------- Status: visible |
