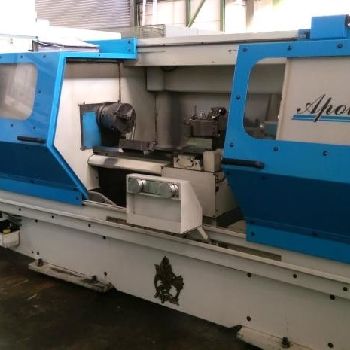

Ajax Apolllo 200 cnc lathe
$ 14,952
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | Ajax |
| Model: | Apolllo 200 |
| Year of Make: | 2000 |

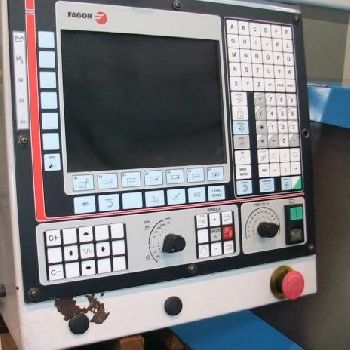

| Description: | Turning diameter 400 mm |turning length 1000 mm |control Fagor |control CNC 8055 / BT |Center height 200 mm |distance between centers 1000 mm |Turning diameter over the cross slide 210 mm |bed width 300 mm |spindle hole 65 mm |Spindle speeds 0 - 3000 rpm |gear stages 2 |Feeds - longitudinal 0 - 10,000 mm / min |Feed - plan 0 - 10,000 mm / min |Rapid traverse - longitudinal / flat 15 m / min |tailstock 68 mm |tailstock quill stroke 155 mm |Tailstock mount MK 4 |Total power requirement 8 kW |Dimensions L x W x H 3.1 x 1.9 x 1.78 m |Accessories |3-jaw chuck, MULTIFIX steel holder with div. Inserts, coolant |device |
| Technical Specifications: | Turning length: 1000.0 mm Turning Ø: 400.0 mm Ø above transversing slide: 210.0 mm Length between centers: 1000.0 mm Type of CNC: Fagor 8055 Spindle bore: 65.0 mm Turning speed: 3000 rpm Spindle motor power: 8.0 kW Tailstock: yes Bar feeder: no Length x width x height: 3100.0 mm × 1900.0 mm × 1780.0 mm Weight: - State: good At local norms: --------- Status: visible |
