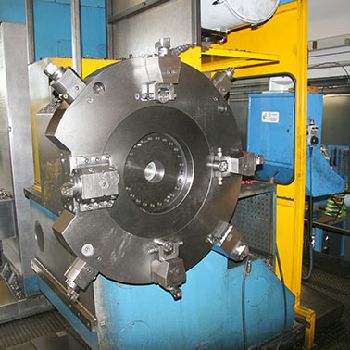

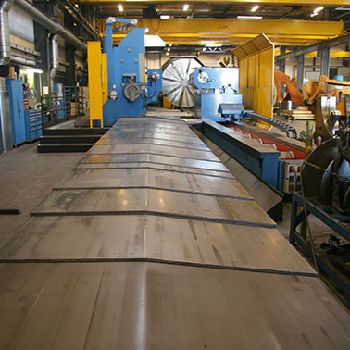

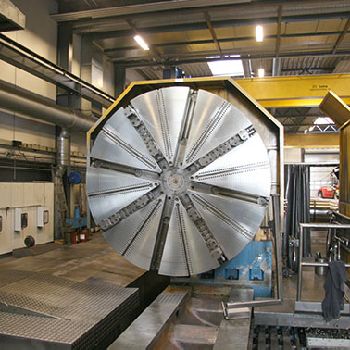

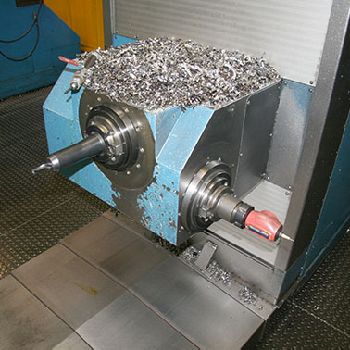

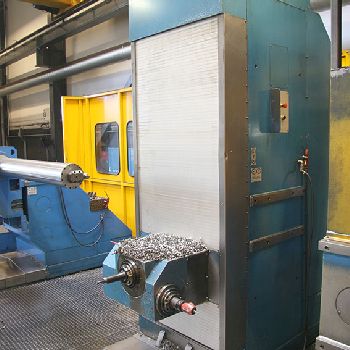

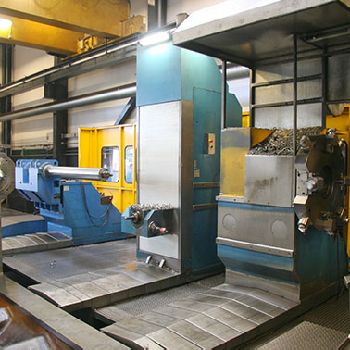

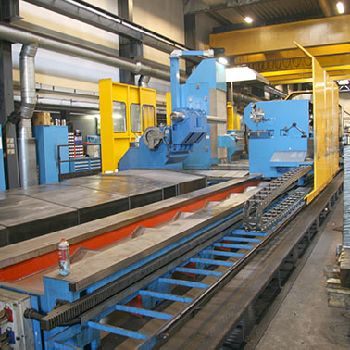

Giana GGTRONIC 3000 TRIPLE X 1350 x 12000 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Denmark |
| Category: | CNC Lathes |
| Manufacturer: | GIANA |
| Model: | GGTRONIC 3000 TRIPLE X 1350 x 12000 |
| Year of Make: | 2011 |
| Description: | Center height 1350 mm |Center distance 12000 mm |Faceplate diam. 2400 mm |Swing over bed 2600 mm |Swing over saddle 2600 mm |Width guideways of carriage bed 1490 mm |Width guideways of tailstock bed 1090 mm |Allowed weight between centers 40000 kg|HEAD |Spindle motor power in a.c. Brushless 100 kW |Spindle nose 20 |Diameter of spindle at front bearing 304,8 mm |Spindle bore 155 mm |Infinitely variable speed range 1-350 rpm |Speed range in constant power 13-350 rpm |Number of speed 3 |Torque 80000 Nm|TAILSTOCK |Tailstock sleeve diameter 460 mm |Tailstock sleeve stroke 200 mm |Centre cone diam.190 mm, taper 1:4|No1 CARRIAGE FOR OPERATIONS OF: TURNING, INTERNAL LONG BORING, TAPPING, BORING AND MILLING |Carriage stroke 12.000 mm |Infinitely variable feed speed 1-12.000 mm/min |Rapid movement speed 12.000 mm/min|1 TRANSVERSAL CARRIAGE-AXIS X FOR TURNING OPERATIONS AND INTERNAL LONG BORING OPERATIONS |Slide stroke App. 1580 mm |Infinitely variable feed speed 1-12.000 m |
| Technical Specifications: | Turning length: 12000.0 mm Turning Ø: 2600.0 mm Ø above the bed: 2600.0 mm Ø above transversing slide: 2600.0 mm Length between centers: 12000.0 mm Type of CNC: SIEMENS 840 DE Max workpiece weight: 60000.0 kg Spindle taper: ISO 50 Spindle bore: 155.0 mm Turning speed: 350 rpm Spindle motor power: 100.0 kW Tailstock: yes Bar feeder: no Length x width x height: 30000.0 mm × 6000.0 mm × 4500.0 mm Weight: 130000.0 kg State: excellent At local norms: yes Status: visible |
