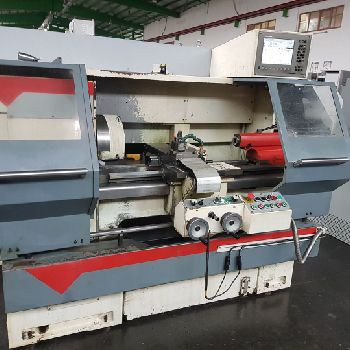

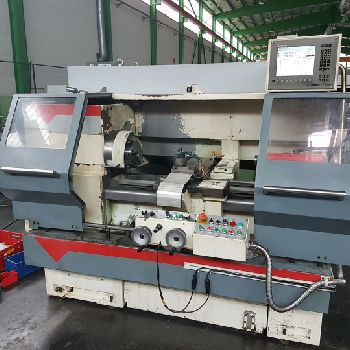

Wemas Hiturn HT 320/800 cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | CNC Lathes |
| Manufacturer: | Wemas |
| Model: | HT 320/800 |
| Year of Make: | 1998 |

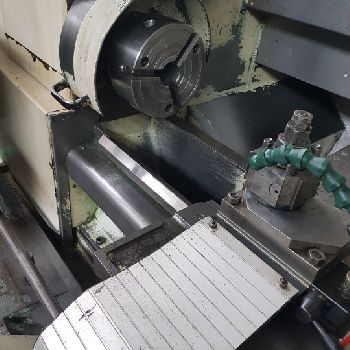

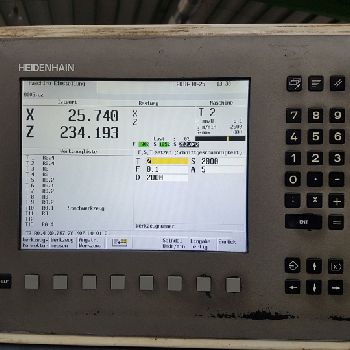

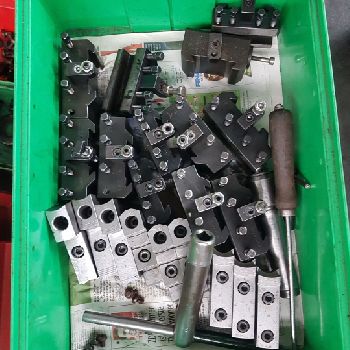

| Description: | Heidenhain Manual Plus control |3-jaw chuck, |4-fold tool holder device |chip tank, |tail stock |Year of manufacture 1998 |center to center 800 mm |turning diameter over bed 320 mm |turning diameter over sledge 150 mm |cross travel 150 mm |longitudinal travel 750 mm |spindle speed (2-steps) 0-4000 rpm |spindle hole 50 mm |tail stock taper MK4 |drive capacity 21 kW |weight ca. 2150 kg |
| Technical Specifications: | Ø above the bed: 320.0 mm Ø above transversing slide: 150.0 mm Length between centers: 800.0 mm Type of CNC: Heidenhain Manual Plus control X-axis: 150.0 mm Z-axis: 750.0 mm Spindle taper: MK4 Spindle bore: 50.0 mm Number of turrets: 4.0 Turning speed: 4000 rpm Spindle motor power: 21.0 kW Tailstock: yes Bar feeder: no Length x width x height: - × - × - Weight: 2150.0 kg State: good At local norms: --------- Status: visible |
