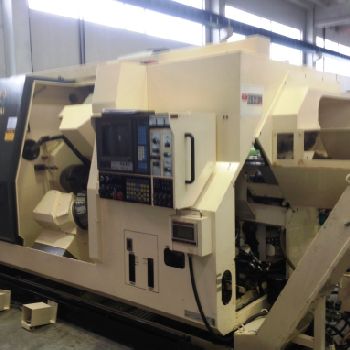

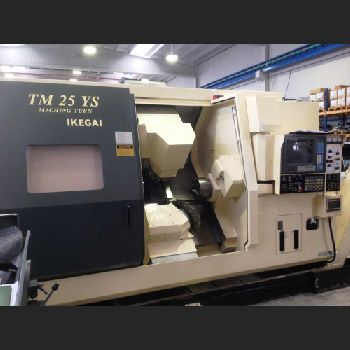

IKEGAI TM 25 YS cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Italy |
| Category: | CNC Lathes |
| Manufacturer: | Ikegai |
| Model: | TM 25 YS |

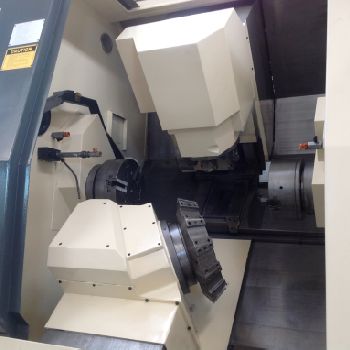

| Description: | IKEGAI CNC LATHE|Upper turret with motorized head cone 40 with +/- 90 indexing 7 positions 30 |Max rotating diameter on the upper carriage: 450 mm |Max turning diameter with upper turret: 350 mm |Max turning diameter with lower turret: 300 mm |Max turning length with both turrets: 410 mm |Max turning diameter from bar (spindle): 65 mm |Max turning diameter from bar (counter-spindle): 50 mm |Self-centering diameter: 254 mm |Spindle bore diameter: 77 mm |Spindle nose: ASA 8 |Spindle rotation speed: rpm 30-3.150 |Spindle / floor center height: 1.105 mm |Counter-spindle self-centering diameter: 210 mm |Counter-spindle mandrel hole diameter: 48 mm |Spindle nose: ASA 6 |Counter-spindle rotation speed: rpm 40-4,000 |Stroke X1 axis upper turret: 480 mm |Y axis travel upper turret: 200 mm |Z1 axis travel (upper turret): 700 mm |X2 axis travel (lower turret): 210 mm |Z2 axis travel (lower turret): 700 mm |Counter-spindle axis B travel: 700 mm |Rapid axes X1 - Y - Z1 upper t |

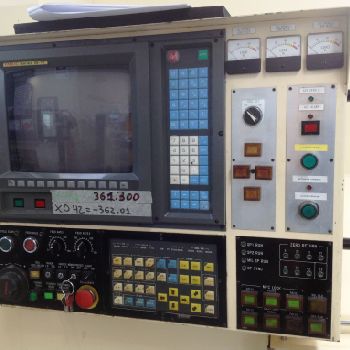

| Technical Specifications: | Turning length: 410.0 mm Turning Ø: 350.0 mm Ø above transversing slide: 450.0 mm Type of CNC: FANUC 15TT Z-axis: 200.0 mm Spindle taper: ASA 6 ; ASA8 Spindle bore: 77.0 mm Number of turrets: 1.0 Number of tools on turret: 12.0 Turning speed: 3150 rpm Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
