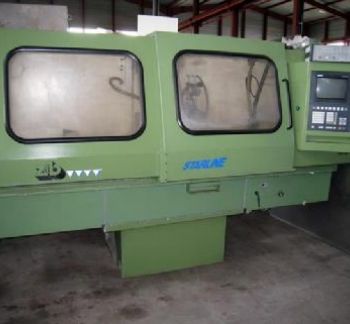

ZIERSCH BALTRUSCH STARLINE 800 CNC Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | Surface Grinding Machines |
| Manufacturer: | Ziersch |
| Model: | STARLINE 800 CNC |
| Year of Make: | 1996 |
| Description: | Table length 800 mm |Table width 300 mm |Max. distance from table |to spindle centreline 600 mm |Grinding length 800 mm |Grinding width 300 mm |Grinding wheel: |diameter 250 mm |Width 50 mm |bore 50.8 mm |max. width 70 mm |Table speeds: |stepless |from 2 m/min |up to 35 m/min |Creep feed: |from 2 m/min |up to 1000 m/min |Automatic cross feed: |stepless |from 1 mm/min |up to 10000 mm/min |Automatic vertical feed: |from 0.001 mm/min |up to 10000 mm/min |Voltage 50 Hz 3x 400 Volt |Grinding spindle motor 6.6 kW |Total power required 22 kVA |Machine’s weight about 4500 kg|Various accessories: |Coolant system |Paper filter facility |Oil mist extractor |Stabilisation coolant temperature |Electrical magnetic chuck |Length 800 mm |Width 300 mm |Wheel trueing attachment TAG |Profile wheel trueing attachment TAD |Creep feed |Electronic balancing device |Lamp |Full splash cabin |Interface serial port RS 232-C, V 24 |
| Technical Specifications: | Table length: 800.0 mm Table width: 300.0 mm Manual: No CNC: Yes CNC type: CNC QUICK (SIEMENS 805, PLC) 2 Achsen Wheel diameter: 250.0 mm Wheel width: 50.0 mm Wheel bore: 50.8 mm Length x width x height: - × - × - Weight: 4500.0 kg State: good At local norms: --------- |
