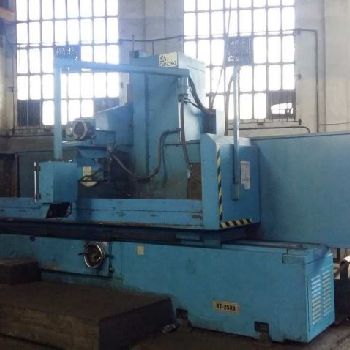

Danobat RTM-2500 800 x 800 (900) Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Spain |
| Category: | Surface Grinding Machines |
| Manufacturer: | Danobat |
| Model: | RTM-2500 800 x 800 (900) |
| Description: | Machine capacity |Maximum grinding length: 2500 mm |Maximum grinding width with grinding wheel 100 mm wide: 900 mm |Maximum grinding height with wheel diameter 500 mm: 1000 mm |Permissible weight on the table: 3100 Kg |Approximate net weight: 12 - 570 r.p.m. |Total installed power: 30 Kw |Constant torque rotation: 12 - 143 r.p.m. |Turning at constant power: 143 - 2300 r.p.m.|Work table |Useful support surface: 2500 x 800 mm |Course "X axis: 2650 mm |Adjustable speed: 1 - 30 m / min |Guided: Flat and V guides coated with Turcite|Handle head |- Cross movement Z axis |Transverse course: 800 mm |Programmable speed: 1 - 8,000 mm / min |Minimum programmable increment: 0.001 mm |Engine: 10 / 1.4 Nm / kW |Diameter of the spindle: 50 mm |Measurement system: Encoder |Guided: Turcite coated prismatic guides |- Vertical movement Y axis |Vertical course: 1150 mm |Programmable speed: 1 - 1,000 mm / min |Minimum programmable increment: 0.001 mm |Engine: 18 / 1.5 Nm / kW |Dia |
| Technical Specifications: | Table length: 2500.0 mm Table width: 800.0 mm Max piece weight: 3100.0 kg Wheel diameter: 500.0 mm Wheel width: 100.0 mm Wheel bore: 203.2 mm Max. wheel speed: 1000 rpm Power: 15.0 kW Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
