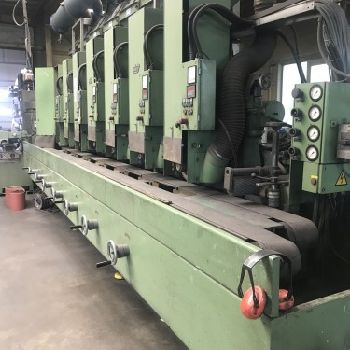

Greif GB 212-7 Surface grinding machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Surface Grinding Machines |
| Manufacturer: | Greif |
| Model: | GB 212-7 |
| Year of Make: | 2001 |
| Description: | Built in 2001|Technical specifications: |Passage height: 150 mm |Contact disc height: 200 mm |Contact disc width: 150 mm |Working height: 1050 mm |Sanding belt size: 2500 x 150 mm |Transport belt width: 150 mm |Feed rate: 3 - 16 m / min. |Number of grinding stations: 7 |Band tensioning arms Type: BA 43 |Drive power: 4.7 / 6.0 kW |Transport engine: 1.1 kW |External dimensions approx.: 7270 x 1400 x 2400 mm |With |- Sanding belt oscillation |- return conveyor belt |- Magnets under each sanding belt position |- Demagnetizer |- Counterweight regulates the contact pressure |- grinding oil spraying device |- Transfer devices |- digital position indicators for the |Grinding head height adjustment |- Cooling device with cascade clamp |used, in good condition |
| Technical Specifications: | Table length: 2500.0 mm Table width: 150.0 mm CNC: No CNC type: - Wheel diameter: 200.0 mm Wheel width: 150.0 mm Power: 6.0 kW Length x width x height: 7270.0 mm × 1400.0 mm × 2400.0 mm Weight: - State: good At local norms: --------- |
