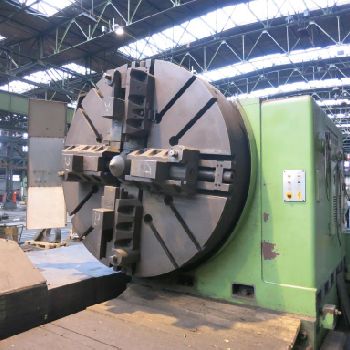

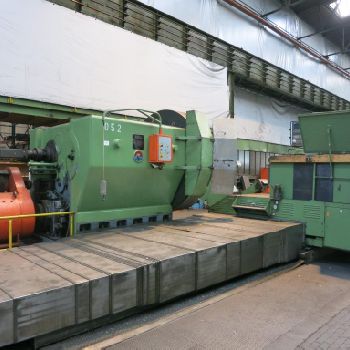

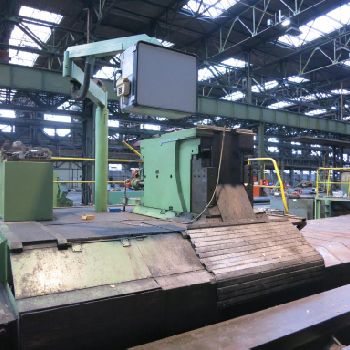

Waldrich Siegen WSD 2400/100 NC cnc lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | CNC Lathes |
| Manufacturer: | Waldrich Siegen |
| Model: | WSD 2400/100 NC |
| Year of Make: | 2011 |
| Description: | Retrofit 2011 |Control Siemens 840C |Centre distance (mm) 19000 |Max swing over bed (mm) 3000 |Max swing over cross slide (mm) 2650 |R.P.M. 0,65 - 99,2 |kW 180 |Volts 400V |Cycles 50 |2x Carriages (CNC) |4-Jaw face plate, 2.500 mm |2x Steady rest roller type , 900 mm |Steady rest roller type, 2.400 mm |Steady rest roller type, 500 mm |Boring bar 450 x 10.840 mm |Boring bar 250 x 3.700 mm |Boring bar 100 x 3.700 mm |Hydrostatic bearing |Chip conveyor |
| Technical Specifications: | Turning length: 19000.0 mm Ø above the bed: 3000.0 mm Ø above transversing slide: 2650.0 mm Length between centers: 19000.0 mm Type of CNC: Siemens 840C Turning speed: 99 rpm Spindle motor power: 180.0 kW Tailstock: no Bar feeder: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- |
