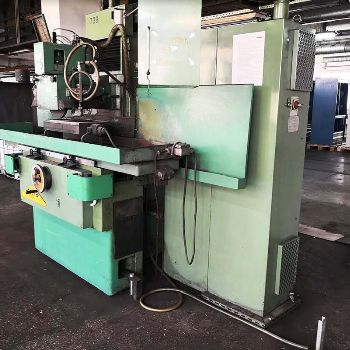

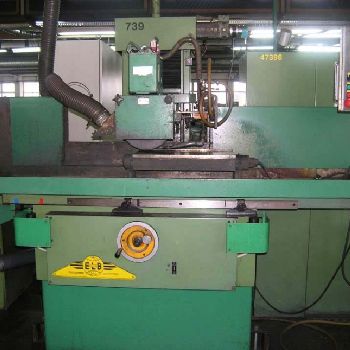

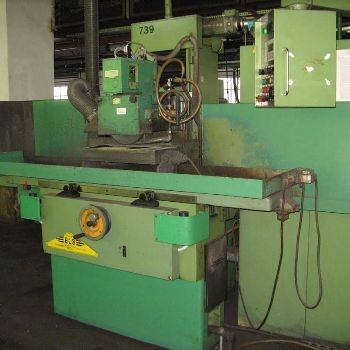

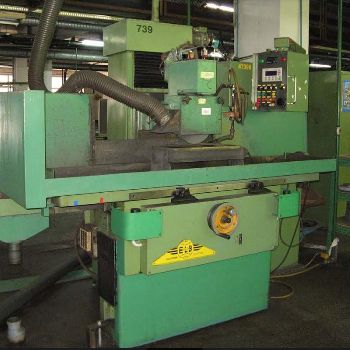

ELB Super Rubin 024 NC-K Surface grinding machine
$ 10,778
| Type: | Buy-It-Now |
| Location: | Romania |
| Category: | Surface Grinding Machines |
| Manufacturer: | ELB-SCHLIFF |
| Model: | Super Rubin 024 NC-K |
| Year of Make: | 1982 |

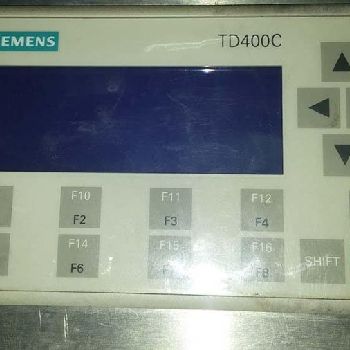

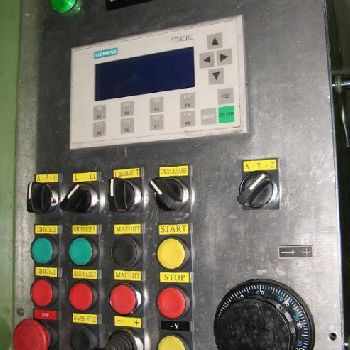

| Description: | Equipped with Siemens Simatic TD 400 C Operator Interface Panel|Grinding length 600 mm |grinding width 300 mm |workpiece height 375 mm |Magnetic table 550 x 250 mm |Table bed 900x250 mm |Distance table- spindle 525 mm |Grinding wheel 300x76,2x50 mm |Table stroke 10 - 620 mm |Auto cross feed. Reverse: 3 mm - 2/3 wheel width |Auto cross feed. Transverse stroke: 310 mm |speed: 1.2 - 1200 mm / min |Wheel speed: 1000-3500 rpm |Table load: 300 kg |Weight of the machine ca. 3300 kg |Machine stopped from production near 4-5 years ago |
| Technical Specifications: | Table length: 900.0 mm Table width: 250.0 mm CNC: Yes CNC type: Siemens Simatic TD 400 C Max piece weight: 300.0 kg Max. wheel speed: 3500 rpm Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: visible |
