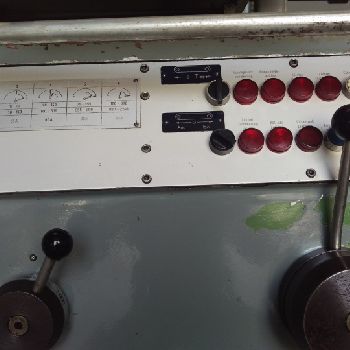

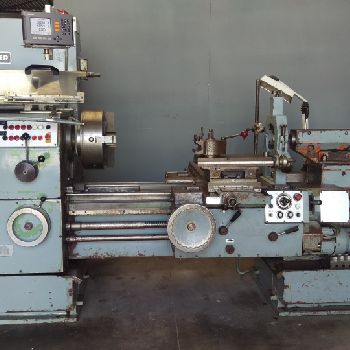

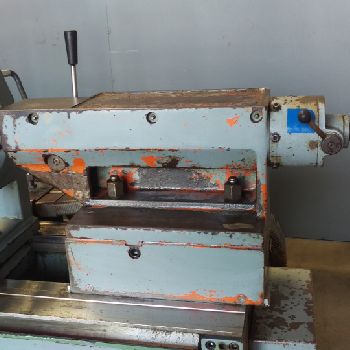

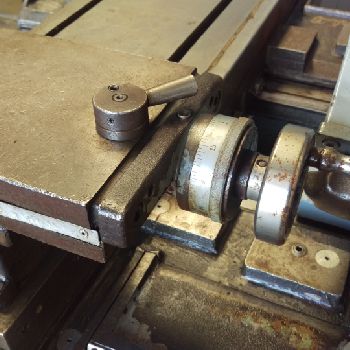

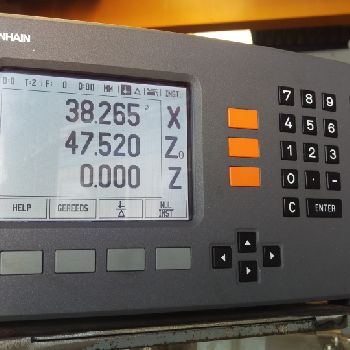

Schaerer UD632 lathe
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Netherlands |
| Category: | Lathes |
| Manufacturer: | Schaerer |
| Model: | UD632 |
| Year of Make: | 1982 |
| Description: | Working height above ground: 1120 mm |Top height over flat track: 320 mm |Circulation above bed: 660 mm |Circulation over cross slide short: 450 mm |Circulation over cross slide country: 420 mm |Circulation over recess: 710 mm |Drive power: 15 - 22 kW |Torque a.d. Working spindle: 3000 Nm |Max. Workpiece weight between the tips without jib: 1500 kg |Max. Workpiece weight between the sides with a jig: 2200 kg |Bed width: 460 mm|work spindle |Spindle head with centering cone: 55022, size 8 |Spindle in front bearing: 120 mm |Spindle bore, continuous: 72 mm |Front cone 1:20: 80 mm |Inner cone: Morse 5 |Speeds: 1.8 - 2240 1 / min|bedslide |Feeds Quantity: 3 x 32 |Longitudinal range A 1: 1: 0.07 - 1.12 mm / rev |Longitudinal range B 4: 1: 0,31 - 4,5 mm / rev |Longitudinal range C 24: 1: 1.8 - 28 mm / rev|Plan area A 1: 1: 0.035 - 0.56 mm / rev |Plan area B 4: 1: 0.16 - 2.24 mm / rev |Plan range C 24: 1: 0.9 - 14 mm / rev|Rapid traverse longitudinal: 5000 mm / min |
| Technical Specifications: | Length between centers: 1000.0 mm Center height: 320.0 mm Turning length: 1000.0 mm Turning Ø: 660.0 mm Ø above the bed: 660.0 mm Ø above transversing slide: 420.0 mm Diameter in the gap: 450.0 mm Max workpiece weight: 1500.0 kg Spindle nose: 55022 / 8 Spindle bore: 72.0 mm Turning speed: 2240 rpm Spindle motor power: 22.0 kW Overhauled: no Length x width x height: - × - × - Weight: - State: good At local norms: --------- Status: under power |
