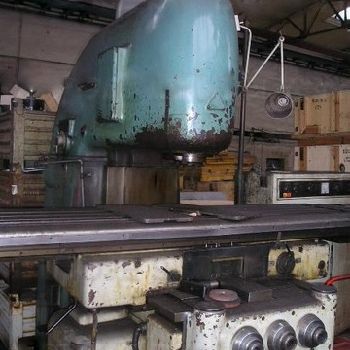

Tos Kuřim FB 50 V vertical milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Vertical Milling Machines |
| Manufacturer: | TOS Kurim |
| Model: | FB 50 V |
| Description: | external table dimensions 630x2240mm |maximum table load 1600kg |spindle cone: |normal steep 50 |at the request of Morse 6 |spindle head distance from table 80-580mm |Spindle speed: |number of degrees 18 |range 28-1400 rpm |machine table movements: |longitudinal 1400mm |transverse 450mm |vertical 500mm |feeds: |number of degrees 24 |longitudinal and transverse 10-2000mm / min |vertical 2.5-500mm / min |rapid traverse: |longitudinal and transverse 3200mm / min |vertical 800mm / min |electric motor for spindle drive 28kW |electric motor for sliding 3kW |ground plan area of the machine 2680x4260mm |machine weight 10000kg |Price by agreement. |
| Technical Specifications: | Table length: 630.0 mm Table width: 2240.0 mm Max load on table: 1600.0 kg Spindle taper: strmý 50 Overhauled: no Length x width x height: 2680.0 mm × 4260.0 mm × - Weight: 10000.0 kg State: good At local norms: --------- Status: visible but unplugged |
