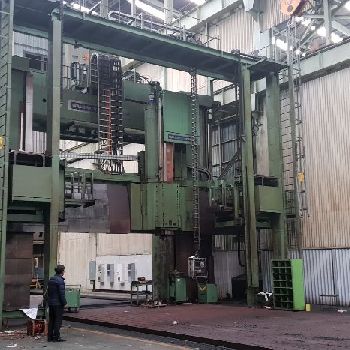

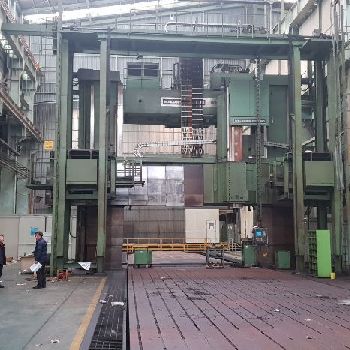

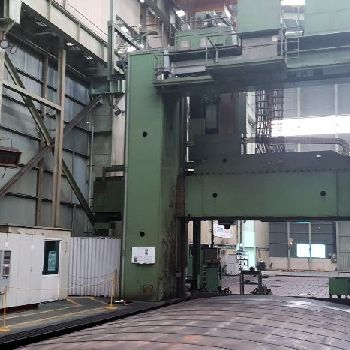

Waldrich Coburg NO Availebl Portal milling machine
$ 1,090,635
| Type: | Buy-It-Now |
| Location: | South Korea |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | WALDRICH COBURG |
| Model: | NO Availebl |
| Year of Make: | 2008 |

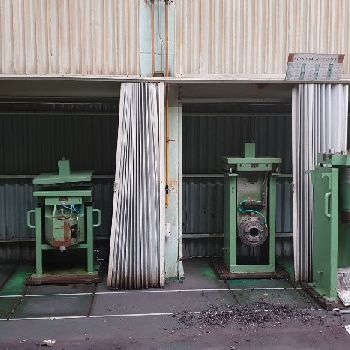

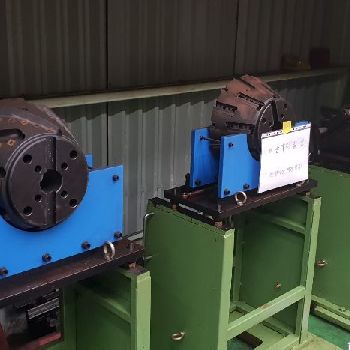

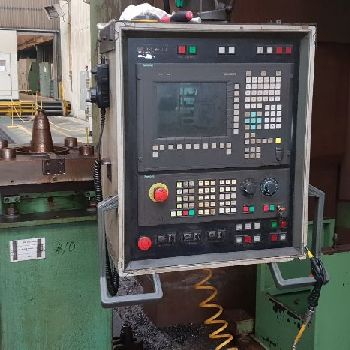

| Description: | ITEM : CNC PLANER TYPE MILLING MACHINE |MAKE : WALDRICH COBURG |YEAR : 2008 overhauled|SPECIFICATION :|CNC Control : SIEMENS 840D |X-Axis : 18,800 mm |Y-Axis : 8,000 mm |Z-Axis : 3,000 mm |W-Axis : 5,000 mm|Table size : 18,500 x 6,100 mm |Pass width x height : (6,500 mm x 7,000 mm) |Main motor : 105 kw |Spindle taper : ISO 60 |Max. RPM : 2,500 RPM |Max. workpiece weight : 350 ton|Horizontal ATT : ECCENTRIC ATT |Universal ATT : SLIM ATT |Guide-way ATT : EXTENSION ATT |
| Technical Specifications: | X axis: 18800.0 mm Y axis: 8000.0 mm Z axis: 3000.0 mm CNC: Yes Table length: 18500.0 mm Table width: 6100.0 mm Max load on table: 350000.0 kg Type of CNC: SIEMENS 840D Spindle taper: ISO 60 Max. spindle speed: 2500 rpm Spindle motor power: 105.0 kW Length x width x height: - × - × - Weight: - State: excellent At local norms: --------- Status: visible |
