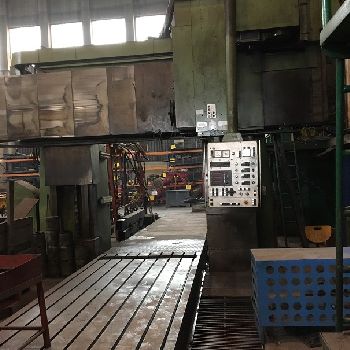

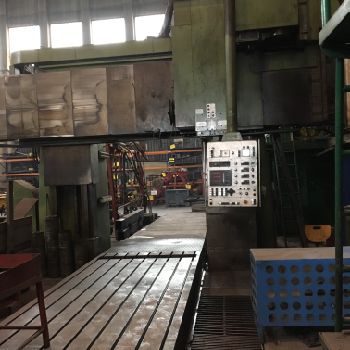

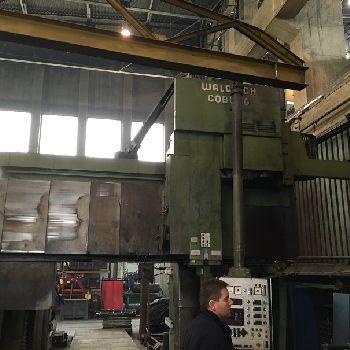

Waldrich Coburg 17-10-WFP 180 NC portal / gantry milling machine
$ 261,091
| Type: | Buy-It-Now |
| Location: | Poland |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | WALDRICH COBURG |
| Model: | 17-10-WFP 180 NC |
| Year of Make: | 1981 |

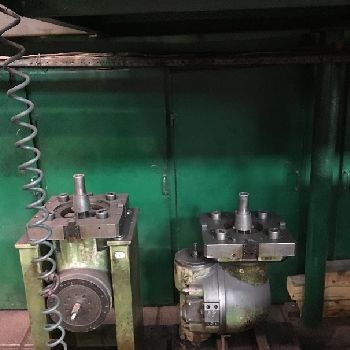

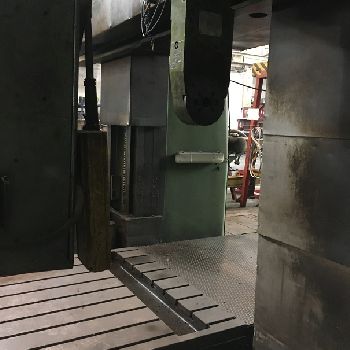

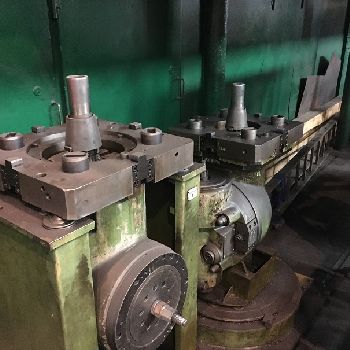

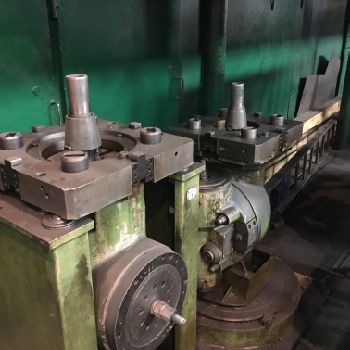

| Description: | Milling Machine WFP 180 NC, |Machine on ball without loose bolts, |Table surface 2000x9000, |X = 8000 on bumpers, |Max = 9000 |Y = 2000, |Z = 1250, |Cone in spindle and ISO 50 heads, |Three machining heads, |Extension to the spindle, |Ball screws, |Readings on axes, |A lot of equipment, |Complete factory 100% DTR, |100% technically efficient machines in impeccable technical condition, |Electrics in the original, |Is upstream|The machine, in a very rare custom made to order 90% of these machines, came out on trapezoidal screws, |The machine has automatic change and fastening of heads on hydraulic connectors, which is very easy to work with, stands for machining heads, also adjusting the angle of the head position at 90 degrees |

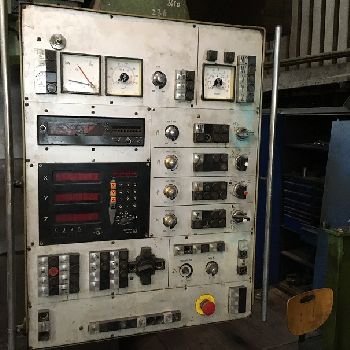

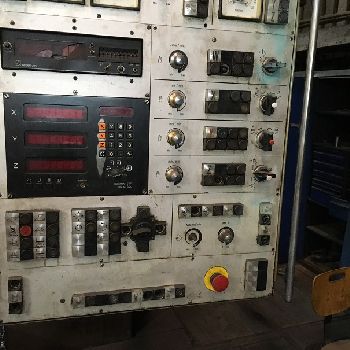

| Technical Specifications: | X axis: 9000.0 mm Y axis: 2000.0 mm Z axis: 1400.0 mm CNC: Yes Table length: 9000.0 mm Table width: 2000.0 mm Max load on table: 50000.0 kg Type of CNC: Heidenhain TNC 121 Spindle taper: ISO60 Max. spindle speed: 750 rpm Spindle motor power: 80.0 kW Length x width x height: 22000.0 mm × 5500.0 mm × 5500.0 mm Weight: 88000.0 kg State: excellent At local norms: --------- Status: under power |
