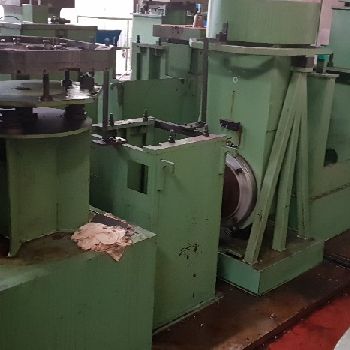

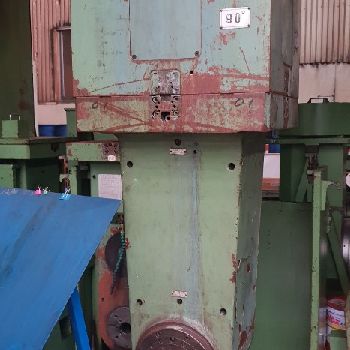

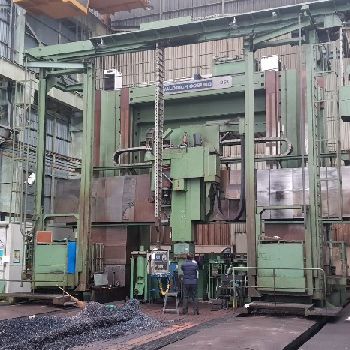

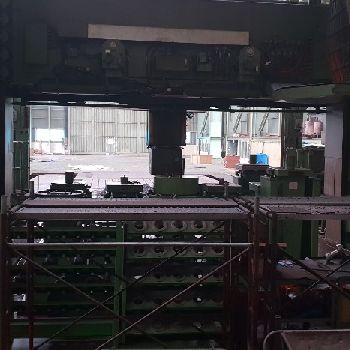

Waldrich Coburg GM 450 Portal milling machine
$ 948,522
| Type: | Buy-It-Now |
| Location: | South Korea |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | WALDRICH COBURG |
| Model: | GM 450 |
| Year of Make: | 2008 |

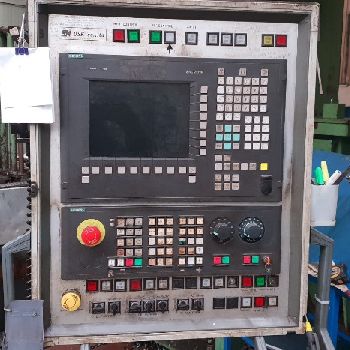

| Description: | ITEM : CNC GANTRY TYPE MILLING MACHINE |MAKE : WALDRICH COBURG |MODEL : GM 450 |YEAR : 2008 overhauled|SPECIFICATION :|CNC Control : SIEMENS 840D |X-Axis : 17,500 mm + EXTEND 5,000 mm |Y-Axis : 6,500 mm |Z-Axis : 1,000 mm |W-Axis : 3,510 mm + EXTEND 800 mm|X Axis power : 28.3 kw |Y-Axis : 11.3 kw |Z-Axis : 16.8 kw |W-Axis : 18.8 kw |A-Axis : 7.85kw|T-slot able size : 18,000 x 4,500 mm |Pass width x height : (5,200 mm x 5,300 mm) |Main motor : 100 kw |Spindle taper : 1PH7224-2NF15-OBAO |Max. RPM : 2,000 RPM |Max. workpiece weight : 530 ton|Horizontal ATT : ECCENTRIC ATT |Universal ATT : SLIM ATT |Guide-way ATT : EXTENSION ATT |
| Technical Specifications: | X axis: 17500.0 mm Y axis: 6500.0 mm Z axis: 1000.0 mm CNC: Yes Table length: 18000.0 mm Table width: 4500.0 mm Max load on table: 530000.0 kg Type of CNC: SIEMENS 840D Spindle taper: 1PH7224-2NF15-OBAO Max. spindle speed: 2000 rpm Spindle motor power: 100.0 kW Length x width x height: - × - × - Weight: - State: excellent At local norms: --------- Status: visible |
