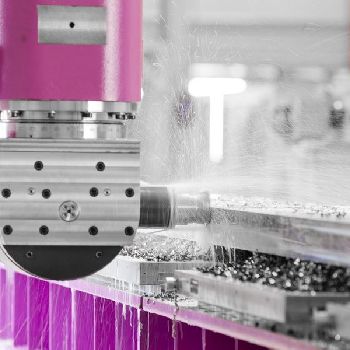

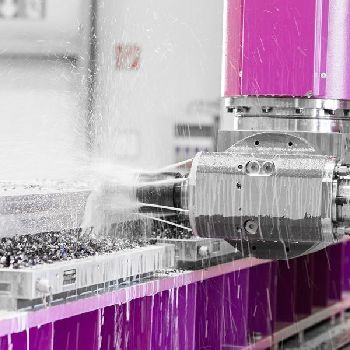

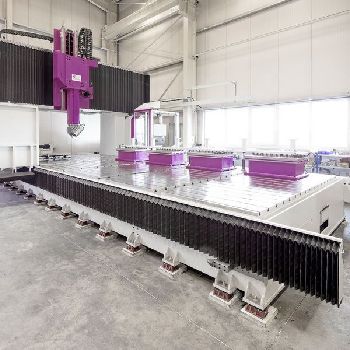

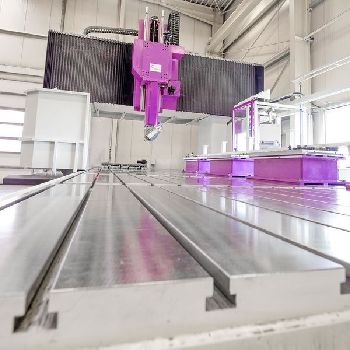

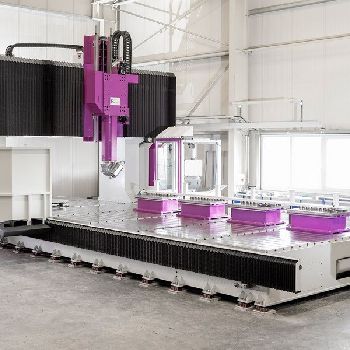

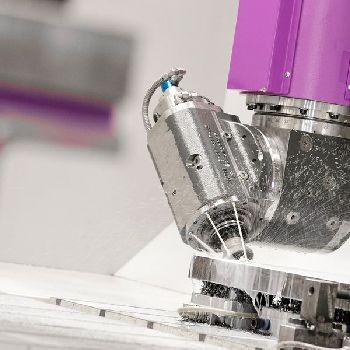

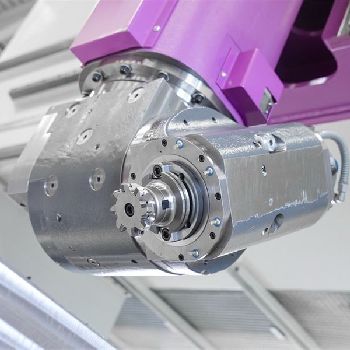

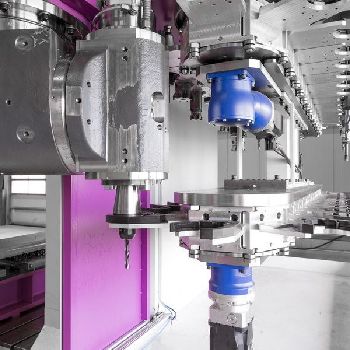

MATTEC 80-30-60 Portal milling machine
$ 1,048,904
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | Mattec |
| Model: | 80-30-60 |
| Year of Make: | 2015 |

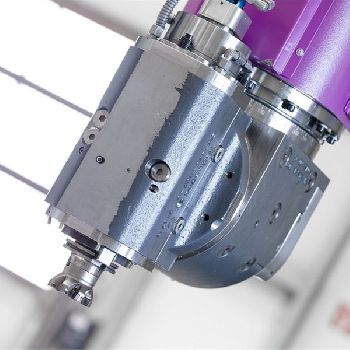

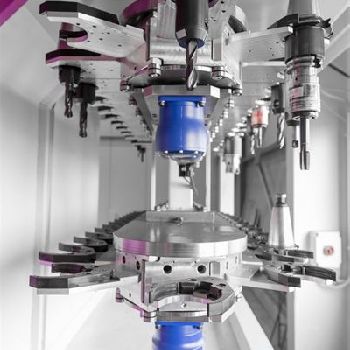

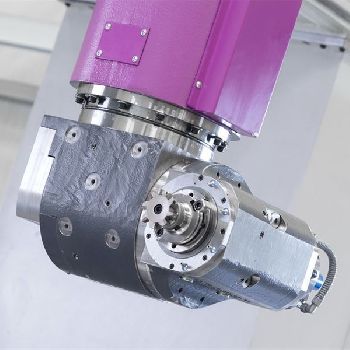

| Description: | x-way 8,500 mm |y-way 4,400 mm |z-way 1,600 mm |Distance between the stands 3,500 mm |Passage height 1,590 mm |Control Heidenhain iTNC 530 |Main spindle: |Speed range - Main spindle 4,000 min / -1 |Drive power - Main spindle 24 kW |Max. Torque 1.000 Nm |Gear stage 1 1,000 Nm / 400 rpm |Gear stage 2 250 Nm / 1,500 rpm |Tool holder ISO 50 |swiveling A: (+/- 90) |rotatable C: 360 / 2,5 |Work table: |Table clamping surface 10,000 x 3,200 mm |Clamping surface 7x 1,350 x 3,200 mm |T-slots 22 mm |T - slot spacing 200 mm |Max. Table load 30,000 kg |Tool changer: |Max. Workpiece diameter 120 mm |Max. Tool weight 15 kg |Tool changer 61 pos. |Max. Tool length 300 mm |Max. Tool through. at free neighbor box. 200 mm |Tool diameter 120 mm |Rapid traverse X: 20 / Y: 20 / Z: 20 m / min |Total power requirement approx. 60 kW |Machine weight approx. 62 t |Space required approx. 12 x 4.5 x 5.9 m |equipment |Coolant system |chip conveyor |Paper belt filter 1,500 L |i |
| Technical Specifications: | X axis: 8500.0 mm Y axis: 4400.0 mm Z axis: 1600.0 mm CNC: Yes Table length: 10000.0 mm Table width: 3200.0 mm Max load on table: 30000.0 kg Type of CNC: Heidenhain iTNC 530 Spindle taper: ISO 50 Max. spindle speed: 1500 rpm Spindle motor power: 24.0 kW Length x width x height: 12000.0 mm × 4500.0 mm × 5900.0 mm Weight: 62000.0 kg State: good At local norms: yes Status: visible |
