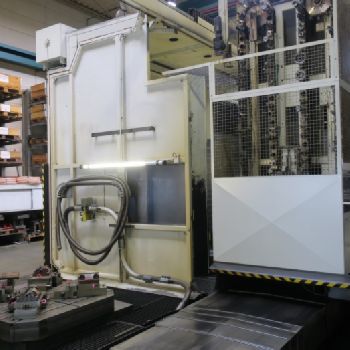

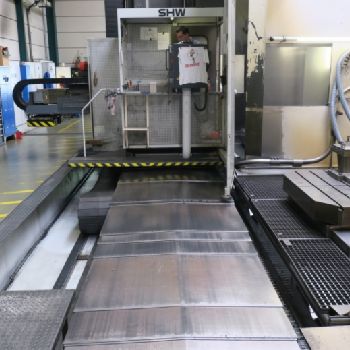

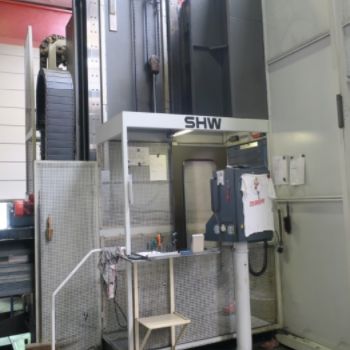

SHW UFZ6 portal / gantry milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Germany |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | SHW |
| Model: | UFZ6 |
| Year of Make: | 1999 |

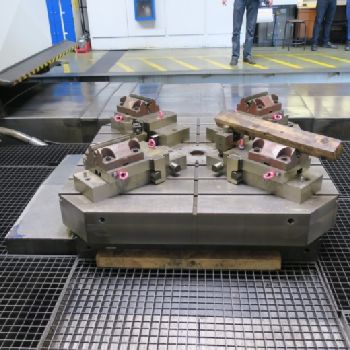

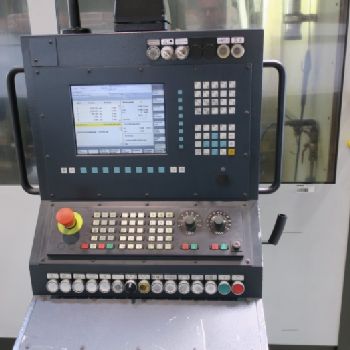

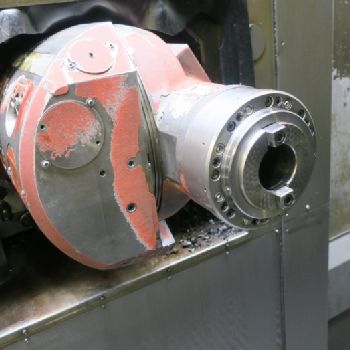

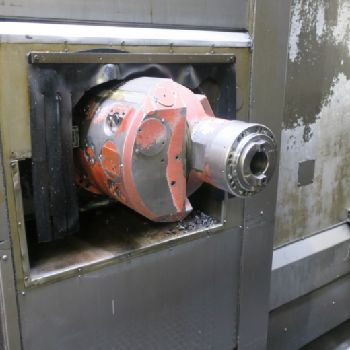

| Description: | Type of machine Travelling column milling machine |Make SHW |Type UFZ6 |Year of manufacture 1999 |Type of control CNC|Technical details |x-travel 12000 mm |y-travel 3100 mm |z-travel 1500 mm |Control SIN840D |Z-axis (spindle headbox - vertical) 1200 mm |tool taper SK50 |spindle turning speed range 22 - 2.200 U/min |power capacity at 100 % load 37,00 kW |power capacity at 40 % load 53,00 kW |max. torque on the spindle 1700 Nm |feed X/Y/Z-axis 2 - 12000 mm/min |rapid traverse X/Y/Z 12,00 m/min |milling head -swivable 360 x 1 Grad |toolpiece magazine: chain magazine 120 Stck |diameter of tools max. 125 mm |tool diameter with 2 vacant positions 250 mm |tool length - max. 400 mm |weight of tools max. 22,00 kg |rotary table: 1 |table surface area 2400 x 2200 mm |table load 25,00 t |B-axis 360 x 1 |number of T-slots 9 |T-slot - width 22H7 mm |T-slot - distance 220 mm |center hole 100H7 mm |rotary table: 2 + 3 |table surface area 1600 x 1600 mm |table load 10, |
| Technical Specifications: | X axis: 12000.0 mm Y axis: 3100.0 mm Z axis: 1500.0 mm CNC: Yes Table length: 2400.0 mm Table width: 2200.0 mm Max load on table: 25000.0 kg Type of CNC: SIEMENS SINUMERIK 840D Spindle taper: SK50 Max. spindle speed: 2200 rpm Spindle motor power: 37.0 kW Length x width x height: 17000.0 mm × 11000.0 mm × 6500.0 mm Weight: 70000.0 kg State: excellent At local norms: yes Status: under power |
