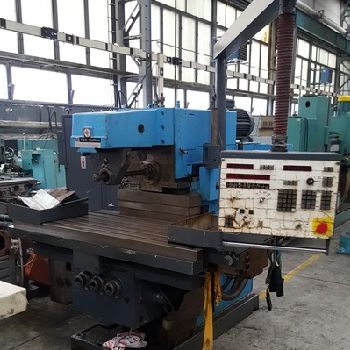

Tos Kuřim FGS 50 NC cnc vertical milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | CNC Milling Machines |
| Manufacturer: | TOS Kurim |
| Model: | FGS 50 NC |
| Description: | Table clamping width - width x length 500x1800 mm |Table clamping surface magnified - width x length 630x1800 mm |Working stroke |- longitudinal, transverse, vertical 1400x630x500 mm |Conical cavity in ISO 50 spindle |Max. torque per spindle 2500 Nm |Spindle speed |- 18 degrees |- 35.5-1800 / min |Working feeds |- 16 degrees |- longitudinal, transverse 10-1800 mm / min |- vertical 12.5-450 mm / min |Rapid traverse |- longitudinal, transverse 14000 mm / min |- Vertical 11000mm / min |Engine power for spindle drive 15 kW |Ground floor area of the machine 12 m2 |Weight 6500 kg |Price by agreement. |
| Technical Specifications: | Table length: 500.0 mm Table width: 1800.0 mm Spindle taper: ISO 50 Overhauled: no Length x width x height: - × - × - Weight: 6500.0 kg State: good At local norms: --------- Status: visible but unplugged |
