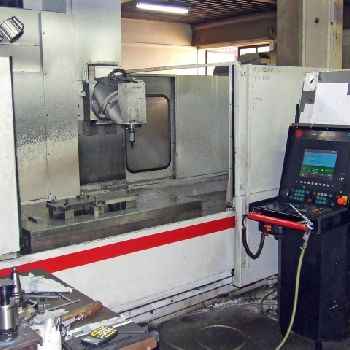

HURON GRAFFENSTADEN GXD 411 F cnc vertical milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Switzerland |
| Category: | CNC Milling Machines |
| Manufacturer: | Huron |
| Model: | GRAFFENSTADEN GXD 411 F |

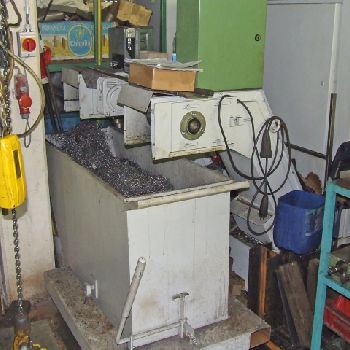

| Description: | Technical data |Table length 1300 mm |Table width 700 mm |Table load max. 2500 kg |Longitudinal travel (X-axis) 1200 mm |Transversal travel (y axis) 600 mm |Vertical travel (z axis) 600 mm |Execution: universal milling head |Taper in spindle 40 ISO |Spindle speeds: |from 20 rpm |up to 3150 rpm |Feeds: |longitudinal from 1 mm/min |up to 4000 mm/min |transversal from 1 mm/min |up to 4000 mm/min |vertical from 1 mm/min |up to 4000 mm/min |Rapid traverse: |all axis 8 m/min |Voltage 50 Hz 3x 380 Volt |Milling spindle motor 11.2 kW |Total power required 40 kVA |Machine’s weight about 8800 kg |Overall dimensions machine: |Length 3700 mm |Width 3525 mm |Various accessories: |Coolant system |Chip conveyor |Lamp |

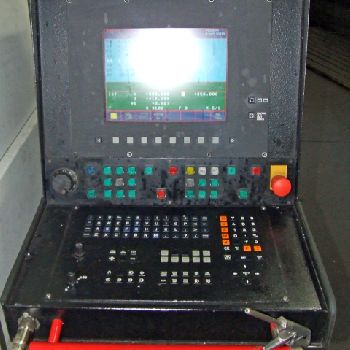

| Technical Specifications: | X Axis: 1200.0 mm Y Axis: 600.0 mm Z Axis: 600.0 mm CNC type: HEIDENHAIN TNC 415 Table length: 1300.0 mm Table width: 700.0 mm Max load on table: 2500.0 kg Spindle taper: ISO 40 Max. spindle speed: 3150 rpm Spindle motor power: 11.5 kW Overhauled: no Length x width x height: 3700.0 mm × 3525.0 mm × - Weight: 8800.0 kg State: good At local norms: --------- |
