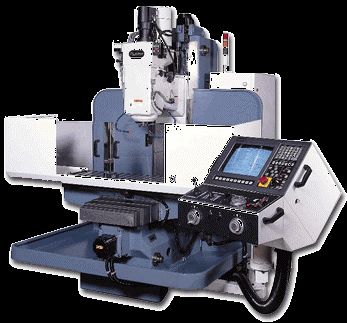

ARIX CNC90 cnc vertical milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | CNC Milling Machines |
| Manufacturer: | Arix |
| Model: | CNC90 |
| Year of Make: | 1999 |
| Description: | Used CNC milling machine ARIX type CNC90.|This machine is characterized by:|Stabilized cast iron frame with double walls, internal reinforcements, with a total mass of 3200kg to absorb vibrations generated by machining. the bearing surfaces of the shafts are ground and scraped|40 mm diameter ball screw with INA inner diameter 25 mm|Centralized lubrication with automatic delay and alarm on the oil level. The machine has 8 lubrication points per axis|Head slides with an important fguidage on 700m rectified tempered on Turcite with catch of play. This slide is protected by a protector of ball screws by steel spiral|Turcite tempered sliding table runners with play catch-up. They support a 110mm thick table guided on 1300mm by 420mm glides.|Spindle with SA40 rigid monoblock head with electric locking of the tool by M16 screw. The powerful 7.5hp spindle motor allows the spindle to be rotated continuously from 0 to 5000rpm with 2 speed ranges|Arix MX5 digital control mounted on articulated ar |
| Technical Specifications: | X Axis: 1000.0 mm Y Axis: 500.0 mm Z Axis: 500.0 mm CNC type: MX5 Table length: 1270.0 mm Table width: 330.0 mm Max load on table: 800.0 kg Spindle taper: SA40 Max. spindle speed: 5000 rpm Spindle motor power: 5.6 kW Overhauled: yes Length x width x height: 3050.0 mm × 1910.0 mm × 2340.0 mm Weight: 3200.0 kg State: good At local norms: yes Status: visible |
