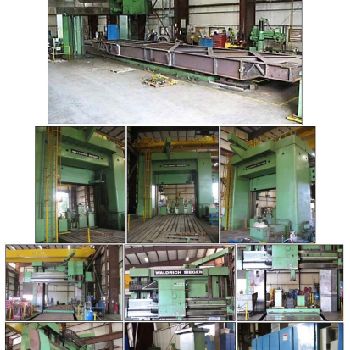

Waldrich Siegen PF-H-150 portal / gantry milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Thailand |
| Category: | Gantry Type Milling Machines |
| Manufacturer: | Waldrich Siegen |
| Model: | PF-H-150 |
| Year of Make: | 1974 |
| Description: | Waldrich-siegen plano-miller - capacity 4500 x 13,700 x 4000 mm|Model: pf-h-150 |Year: 1974 |Machine no: 11167 |Table t-slot area: 4000 mm x 13,000 mm |Total length of table: 14,000 mm |Maximum table traverse: 13,700 mm |Between columns: 4500 mm |Maximum work-piece height: 4000 mm |Maximum table load: 390,000 kg |Bedways: hydrostatic- 3250 x 28,000 mm |Spindle: 360 mm diameter x 450 mm stroke, iso 60 |Total power requirement: 207 kw |Overall dimensions:33,500 mm x 7,300 mm x 8,000 mm |Total weight: 450,000 kg |
| Technical Specifications: | X axis: 13700.0 mm Y axis: 4500.0 mm Z axis: 4000.0 mm CNC: Yes Table length: 14000.0 mm Table width: 4000.0 mm Max load on table: 390000.0 kg Spindle taper: ISO60 Length x width x height: 33500.0 mm × 7300.0 mm × 8000.0 mm Weight: 450000.0 kg State: good At local norms: --------- Status: under power |
