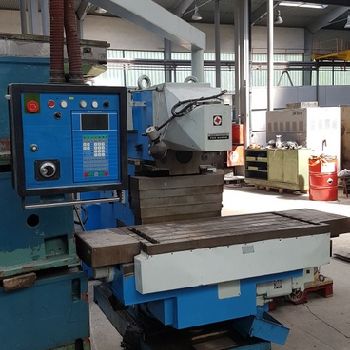

Tos Kuřim FGS 63 CNC cnc horizontal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | Czechia |
| Category: | Horizontal Milling Machines |
| Manufacturer: | TOS Kurim |
| Model: | FGS 63 CNC |
| Description: | SCHLEICHER system |Table clamping surface enlarged - W x D 630x1400mm |Working stroke: longitudinal, transverse, vertical 1120x630x500mm |Conical cavity in spindle ISO 50 |Max. torque on spindle 2500Nm |Spindle speed - 18 degrees 35.5.-1800min-1 |Working feeds - continuous adjustment 1.-2000mm.min-1 |Rapid traverse 5000mm.min-1 |Electric Servo Feed Drive - rated torque 28Nm |Max. workpiece weight 800kg |Engine power for spindle drive 15kW |Ground floor area of the machine 14m2 |Weight 6100kg |Price by agreement. |
| Technical Specifications: | X Axis: 1120.0 mm Y Axis: 630.0 mm Z Axis: 500.0 mm CNC type: SCHLEICHER Table length: 630.0 mm Table width: 1400.0 mm Max load on table: 800.0 kg Spindle taper: ISO 50 Overhauled: no Length x width x height: - × - × - Weight: 6100.0 kg State: good At local norms: --------- Status: visible but unplugged |
