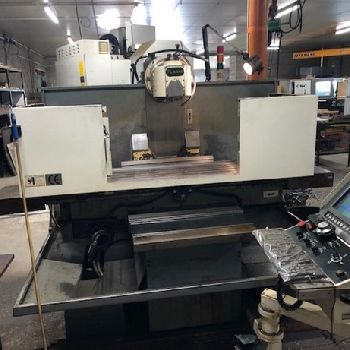

ARIX CNC 125 cnc universal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | France |
| Category: | Universal Milling Machines |
| Manufacturer: | Arix |
| Model: | CNC 125 |

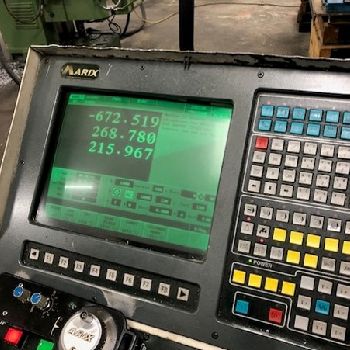

| Description: | Used CNC milling machine ARIX type CNC125|This compact production machine is characterized by:|Cast Iron|Manual 2-axis universal head (Huron charts)|12 speed manual gearbox including 2 recognized by the CN|Prismatic slides with turcite B on the 3 axes|Self-lubrication system timed by the CN|Servo motors AC on the X, Y and Z axes|C5 ball screw on the X, Y and Z axes|Irrigation system|Clamping the tool by pull rod system and hydraulic cylinder|Metal bellows on the X and Y axes|Rear Cartination|Table carting with door equipped with a safety contact|Arix MX5 digital control on PC base with conversational software in French with Compatibility ISO Fanuc, 256 Mb memory (compact flash), RS232 and Ethernet interface, flash compac reader|Electronic crank on pendant|Rotating Beacon|Halogen lighting|Toolbox|Operator manual|CE marking|TECHNICAL CHARACTERISTICS |Arix type numerical control |Longitudinal stroke X 1250 mm |Cross travel Y 500 mm |Vertical stroke Z 470 mm |Surface of the table 1800 |
| Technical Specifications: | X Axis: 1250.0 mm Y Axis: 500.0 mm Z Axis: 470.0 mm CNC type: cnc Table length: 1800.0 mm Table width: 400.0 mm Max load on table: 800.0 kg Spindle taper: bt 50 Max. spindle speed: 2000 rpm Spindle motor power: 7.5 kW Overhauled: no Length x width x height: 4550.0 mm × 2415.0 mm × 1870.0 mm Weight: 3200.0 kg State: good At local norms: --------- |
