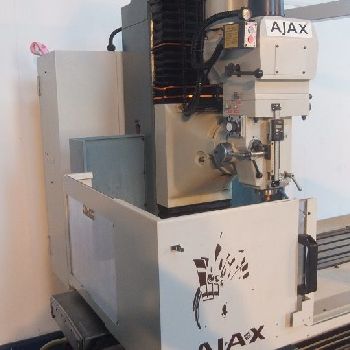

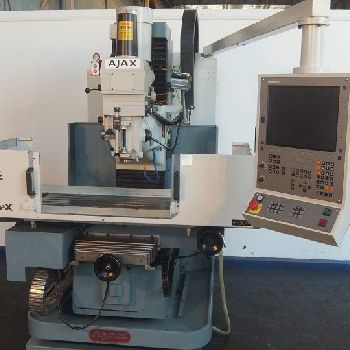

Ajax ajcbm 750 cnc universal milling machine
REQUEST PRICE
| Type: | Buy-It-Now |
| Location: | United Kingdom |
| Category: | Universal Milling Machines |
| Manufacturer: | Universal |
| Model: | ajcbm 750 |
| Year of Make: | 2012 |
| Description: | Ajax AJCBM 750 CNC Bed Type Mill with traverses: X-750mm, Y-400mm, Z-500mm. Table size 1270 x 320mm. Spindle ISO 40. Spindle speeds 50-3800rpm. Heidenhain TNC 320 CNC Control.|Specification |Table size 1270 x 320mm |Longitudinal traverse (X axis) 750mm |Cross traverse (Y axis) 400mm |Vertical traverse (Z axis) 500mm |Maximum table load 600kg |Quill travel 120mm |Quill feeds 0.04, 0.08, 015mm/rev |Quill diameter 100mm |Quill taper IS040 |Spindle motor 5.6kW |Spindle speeds (inf. variable) 50 3800rpm |Spindle nose to table 100 600mm |Spindle centre line to column 526mm |Longitudinal, cross & vertical power motors 0.85 kW |Head tilt left or right 0-90 degrees |Approximate weight 2100kg |Machine in Metric execution |Machine equipped with |Heidenhain TNC 320 CNC control system |Air power drawbar |Quill digital readout |Interlocked table guard |Base splash tray |Coolant system |Lighting |Manual |
| Technical Specifications: | X Axis: 750.0 mm Y Axis: 400.0 mm Z Axis: 500.0 mm CNC type: Heidenhain TNC 320 Table length: 1270.0 mm Table width: 320.0 mm Max load on table: 600.0 kg Spindle taper: IS040 Max. spindle speed: 3800 rpm Spindle motor power: 5.6 kW Overhauled: no Length x width x height: - × - × - Weight: 2100.0 kg State: good At local norms: --------- |
